10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+, 1× 1000 Mbps Combo SFP/RJ45 Port, 20 Gbps, Fanless, 123 W
TP-Link

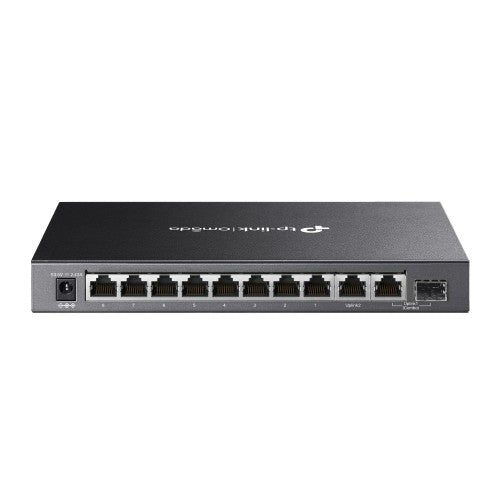

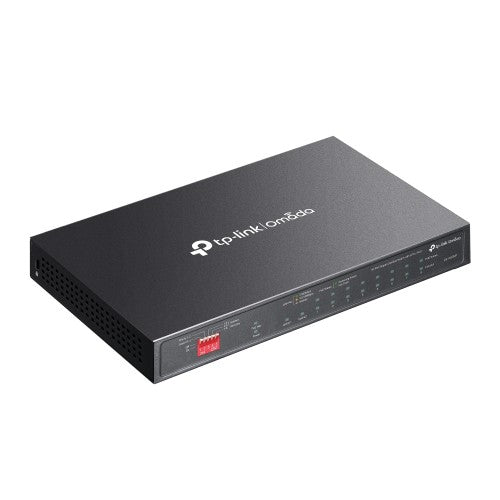

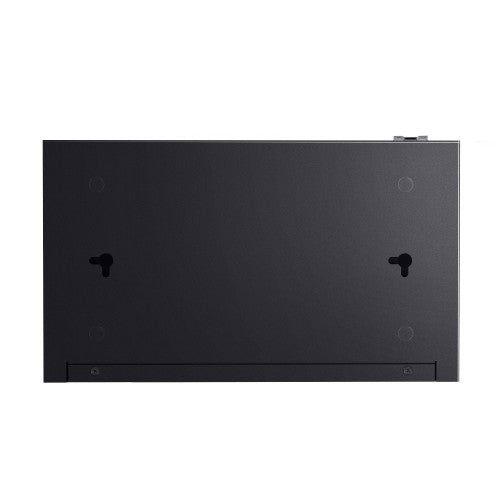

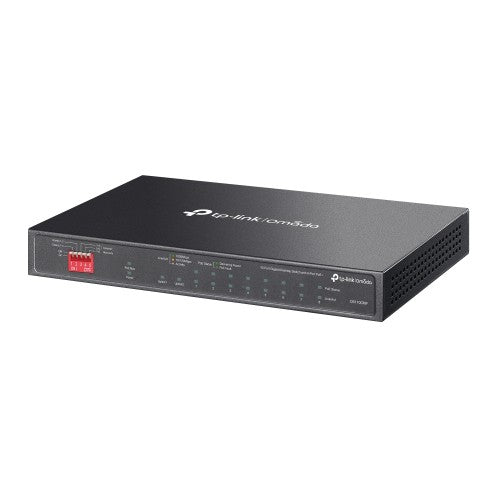

TP-Link Omada DS110GMP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
DS110GMP
$120.25
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m (820ft) data and power transmission range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and Play. No configuration or central management required
- Fanless design reduces power consumption and works silently in its location
Description
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Power connector | AC/DC |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 16 |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Rack mounting | No |
| Performance | |
| Plug and Play | Yes |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 141.4 W |
| Power supply included | Yes |
| Input current | 2.43 A |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 123 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 482.17 BTU/h |
| Weight & dimensions | |
| Width | 8.23" (209 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.02" (26 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Packaging data | |
| User guide | Yes |
| Cables included | Power |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
