Intel Core i5-1235U, 16GB DDR4, Intel UHD, 1TB M.2 NVMe, Wi-Fi 6E, 1GB LAN, 1x RJ45, 4x USB 3.2 Gen.2 Type-A, 1x Thunderbolt 4 Type-C, 1x HDMI 1.4, 1x DisplayPort 1.2, 65W, 124x124x53mm, 548g
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.
Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
BOLT TO THE NEXT POWER
Thunderbolt™ 4 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.
USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.
DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
ALWAYS BE YOUR BACKUP
With the Dual LAN Design, the Cubi 5 will always be your backup and support
the Internet/Intranet dual network environments.
CREATE THROUGH THE 2.5G LAN
Working on NAS? Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN. Integrated with the exclusive MSI LAN Manager, it prioritizes latency-sensitive application and allows you to take control of their experience.
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.
VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

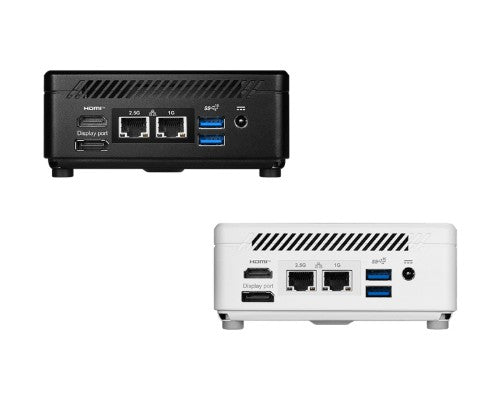

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
Cubi 5 12M
Windows 11 Home
- MSI recommends Windows 11 Pro for business
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
Experience 75% lower latency with WiFi 6E technology(optional)
FW TPM design secures your confidential data with encryption keys
Supports standard VESA-mount
Barebones versions are also available
MSI

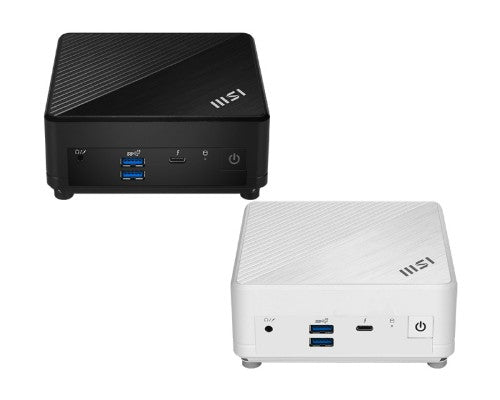

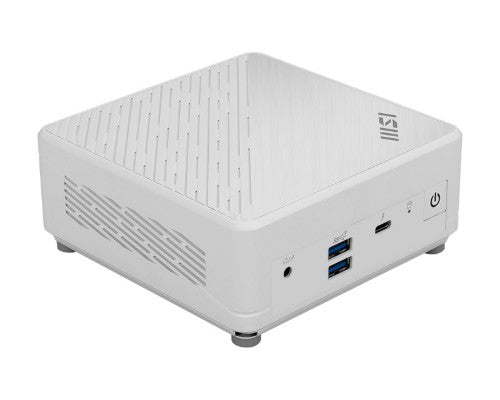

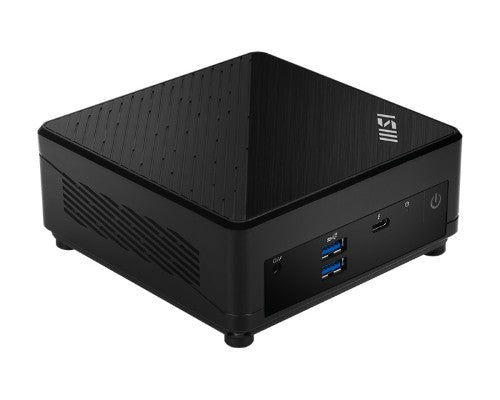

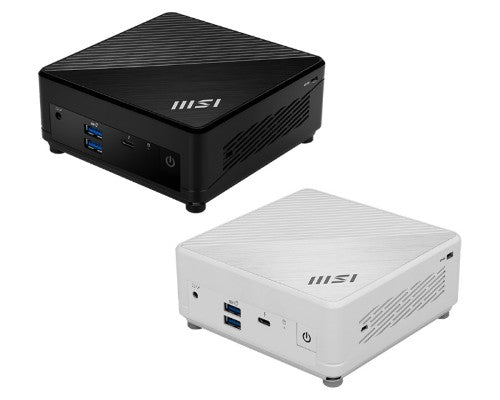

MSI Cubi 12M-286US Intel® Core™ i5 i5-1235U 16 GB DDR4-SDRAM 1 TB SSD Windows 11 Home Mini PC Workstation Black, White
Part number:
CUBI512M286
$921.04
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Ready For Various Scenarios
- Small But Powerful
- PEACE of MIND
Description
Be Your window To The WorldWe always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.
Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
BOLT TO THE NEXT POWER
Thunderbolt™ 4 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.
USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.
DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
ALWAYS BE YOUR BACKUP
With the Dual LAN Design, the Cubi 5 will always be your backup and support
the Internet/Intranet dual network environments.
CREATE THROUGH THE 2.5G LAN
Working on NAS? Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN. Integrated with the exclusive MSI LAN Manager, it prioritizes latency-sensitive application and allows you to take control of their experience.
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.
VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.
VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
Cubi 5 12M
Windows 11 Home
- MSI recommends Windows 11 Pro for business
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
Experience 75% lower latency with WiFi 6E technology(optional)
FW TPM design secures your confidential data with encryption keys
Supports standard VESA-mount
Barebones versions are also available
Specifications
| Processor | |
|---|---|
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 3.3 GHz |
| Processor model | i5-1235U |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor threads | 12 |
| Processor cores | 10 |
| Processor family | Intel® Core™ i5 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 2 |
| Optical drive type | No |
| SSD interface | M.2 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total storage capacity | 1 TB |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Technical details | |
| Number of 2.5" bays | 1 |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black, White |
| Chassis type | Mini PC |
| Motherboard chipset | Intel SoC |
| Design | |
| VESA mounting | Yes |
| Volume | 0.66 L |
| Number of 2.5" bays | 1 |
| Product colour | Black, White |
| Chassis type | Mini PC |
| Performance | |
| Market positioning | Business |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel SoC |
| Software | |
| Operating system installed | Windows 11 Home |
| Power | |
| Power supply | 65 W |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Volume | 0.66 L |
| Width | 4.88" (124 mm) |
| Depth | 4.88" (124 mm) |
| Height | 2.09" (53 mm) |
| Weight | 19.3 oz (548 g) |
| Packaging content | |
| Display included | Yes |
| Display | |
| Display included | Yes |
| Other features | |
| VESA mounting | Yes |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
