163'', LED, 1920x1080, 3600 x 2025 mm, HDMI, RJ45, Wi-Fi, IR
Viewsonic LDM163-182 signage display Digital signage flat panel 163" LED Wi-Fi 600 cd/m² Black Android 9
Part number:
LDM163-182
$45,329.03
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Seamless and Immersive Screen
- Flexible Installation with Detachable System Control Box
- Durable Glue-on Board Surface Treatment
- Easy Content Sharing
- Centralized Management via LAN Control
- Hassle-Free Installation & Maintenance
Description

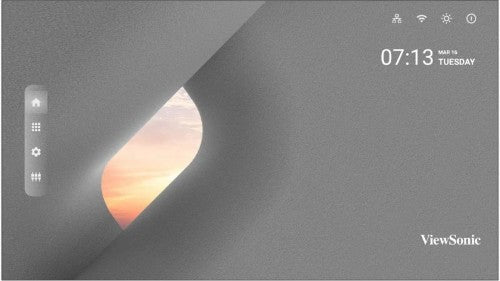

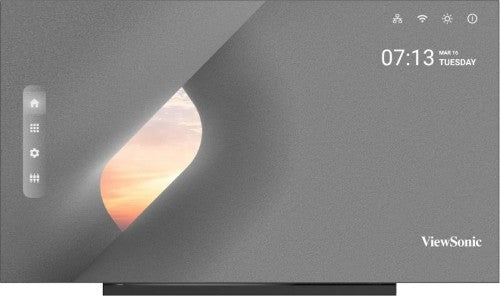

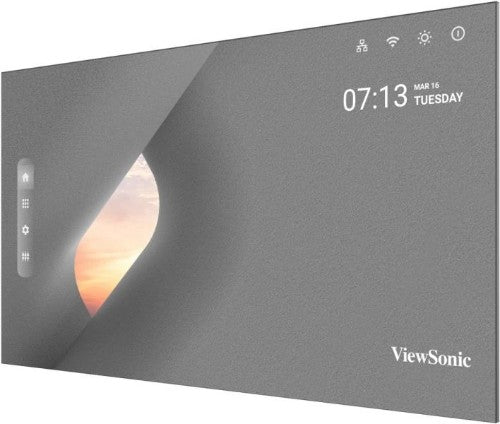

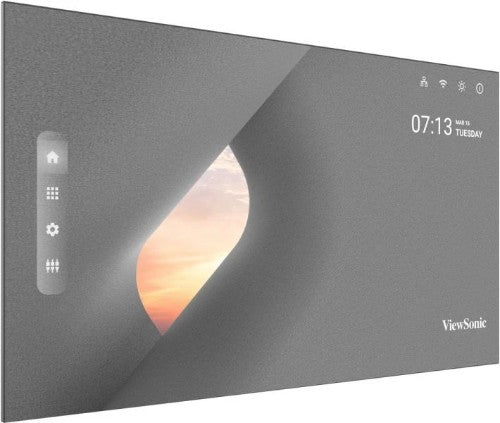

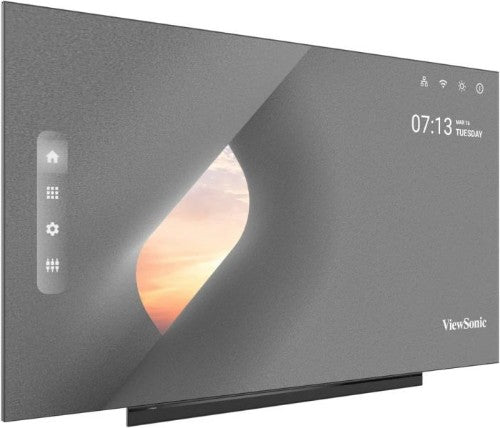

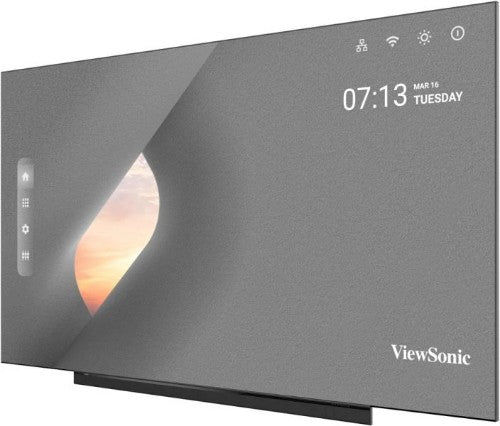

The ViewSonic® LDM163-182 is an innovative All-in-One Direct View LED display. With a huge 163” screen size, the LDM163-182 is built to impress as a centerpiece in any higher education auditorium or lecture hall, as well as in corporate conference rooms, boardrooms and lobbies. This display boasts immersive and stunning visuals thanks to Full HD resolution that pairs perfectly with an impressive 600-nit high brightness. This ensures content and messages are always easy to see, even in brightly lit environments. A sleek design and innovative detachable control box delivers a 99% screen-to-body ratio, allowing the display to seamlessly blend into any space while keeping the controls conveniently accessible. Plus, a Glue-on-Board (GOB) LED surface treatment delivers an IP54 rating for enhanced protection from collisions, dust and moisture. With seamless installation, 24/7 reliability, and purposefully designed features for high-impact messaging and digital signage applications, this display sets a new standard for visual excellence at an unbeatable value.Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Active display area (W x H) | 141.7 x 79.7" (3600 x 2025 mm) |
| Display technology | LED |
| Display diagonal | 163" |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 6500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Panel life | 100000 h |
| Vertical scan range | 56 - 85 Hz |
| Horizontal scan range | 31 - 94 kHz |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| Infrared data port | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 5 |
| Audio (L/R) out | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| RS-232 interface | Yes |
| USB version | 3.0 |
| USB ports quantity | 2 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Mounting type | Wall |
| Wall mountable | Yes |
| Performance | |
| Purpose | Commercial |
| International Protection (IP) code | IP54 |
| Wi-Fi | Yes |
| Panel life | 100000 h |
| Power | |
| Power consumption (sleep) | 0.5 W |
| Power consumption (max) | 2642 W |
| Power consumption (typical) | 919 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Input voltage | 100-120 V |
| Computer system | |
| Operating system installed | Android 9 |
| Internal storage capacity | 32 GB |
| Weight & dimensions | |
| Weight | 502.7 lbs (228 kg) |
| Weight (with stand) | 500.4 lbs (227 kg) |
| Display width | 142.2" (3612 mm) |
| Display depth | 1.22" (31 mm) |
| Display height | 85.5" (2171 mm) |
| Packaging data | |
| Package width | 88.6" (2250 mm) |
| Package depth | 39.4" (1000 mm) |
| Package height | 48.8" (1240 mm) |
| Package weight | 729.7 lbs (331 kg) |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | IR, LAN (RJ-45), Power |
| Packaging content | |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | IR, LAN (RJ-45), Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Android 9 |
| Internal storage capacity | 32 GB |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 88.6" (2.25 m) |
| Pallet gross length | 39.4" (100 cm) |
| Pallet gross height | 48.8" (124 cm) |
| Harmonized System (HS) code | 8528521000 |
| Features | |
| Harmonized System (HS) code | 8528521000 |
| Wall mountable | Yes |
| Technical details | |
| USB connector type | USB Type-A, USB Type-C |
| LED backlighting type | Direct-LED |
| Weight (with stand) | 500.4 lbs (227 kg) |
| Other features | |
| USB connector type | USB Type-A, USB Type-C |
| Wi-Fi | Yes |
| Power consumption (max) | 2642 W |
| Display technology | LED |
| Weight (with stand) | 500.4 lbs (227 kg) |
| Input voltage | 100-120 V |
