1x 10/100/1000 Mbps RJ45, 1x Gigabit SC, 1310 nm / 1550 nm RX, 94.5x73.0x27.0 mm

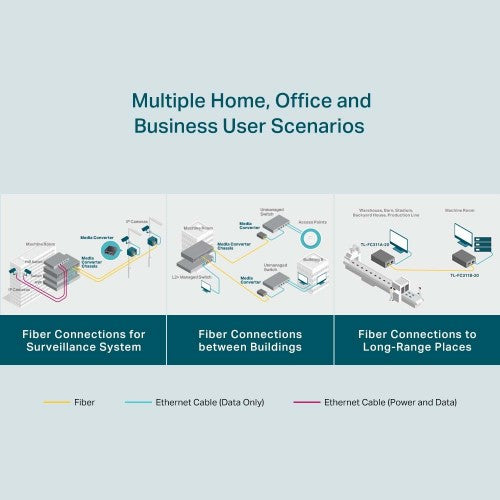

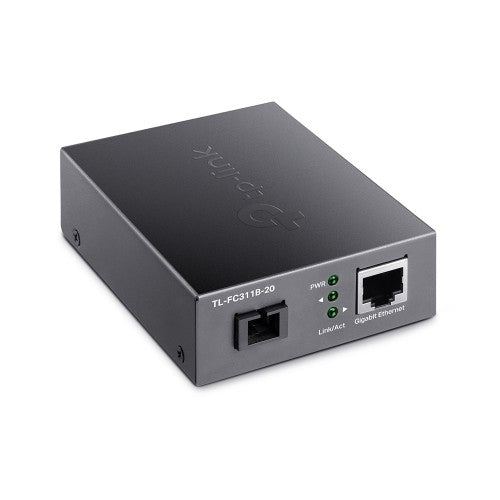

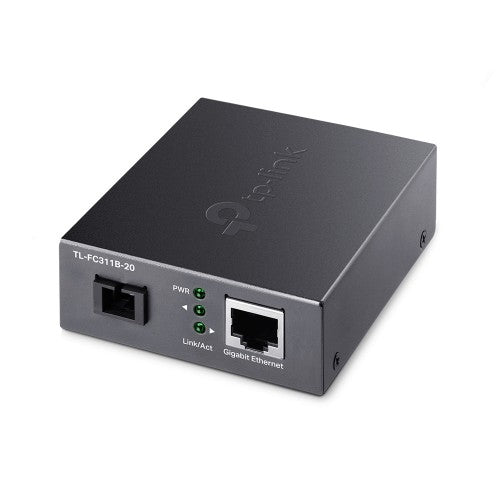

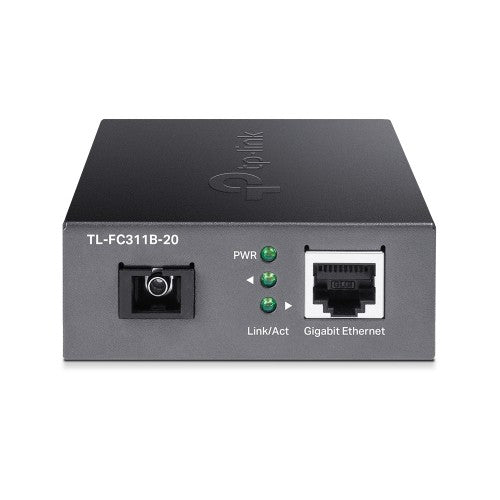

TL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

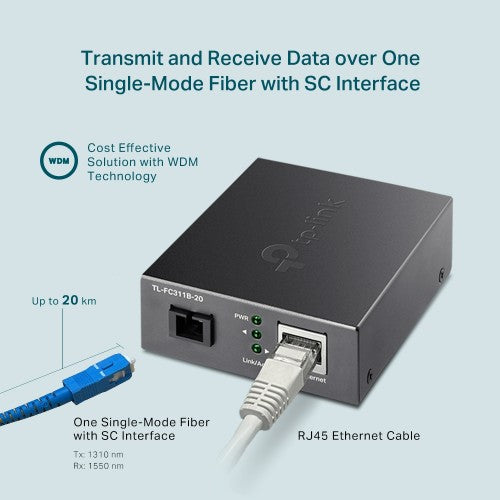

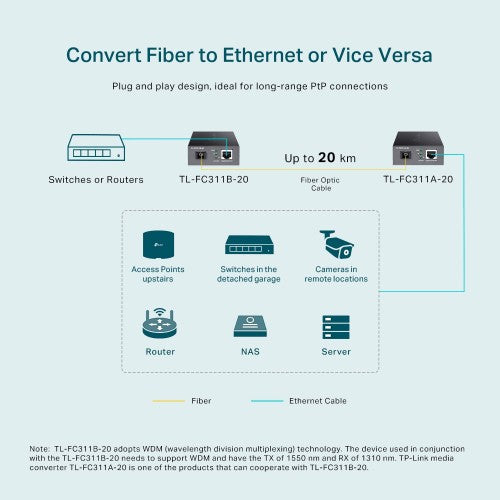

TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TP-Link
TP-Link TL-FC311B-20 network media converter 1000 Mbit/s Single-mode Black
Part number:
FC311B-20
$20.72
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

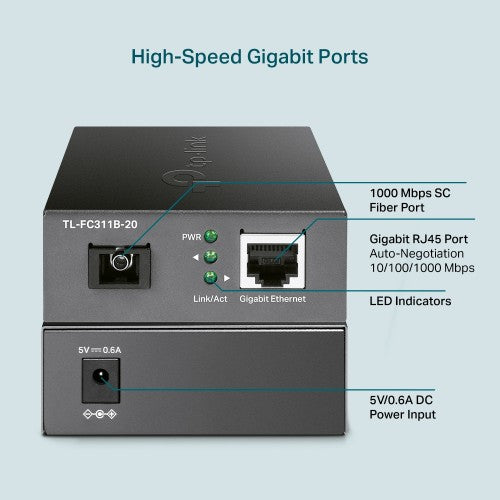

- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
Description
What This Product DoesTL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specifications
| Network | |
|---|---|
| Fiber optic connector | SC |
| Data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Internal | No |
| Data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Performance | |
| Wavelength-division multiplexing (WDM) | Yes |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Power | |
| Output voltage | 5 V |
| Output current | 0.6 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 3.72" (94.5 mm) |
| Depth | 2.87" (73 mm) |
| Height | 1.06" (27 mm) |
| Package depth | 8.03" (204 mm) |
| Package width | 6.5" (165 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 19.8 oz (560 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package depth | 8.03" (204 mm) |
| Package width | 6.5" (165 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 19.8 oz (560 g) |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
