8-Port 10G Unmanaged Desktop/Rackmount Switch, 160 Gbps, 1x Fan, 31.2 W
TP-Link

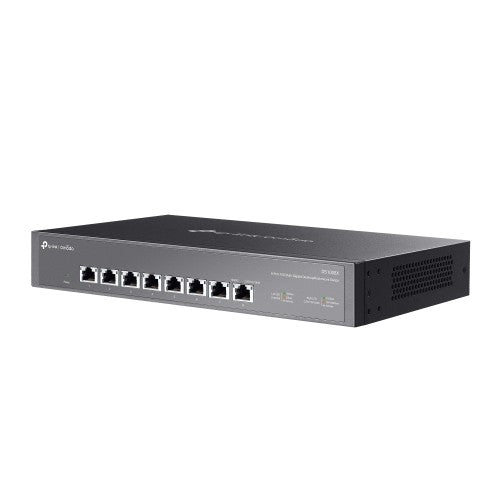

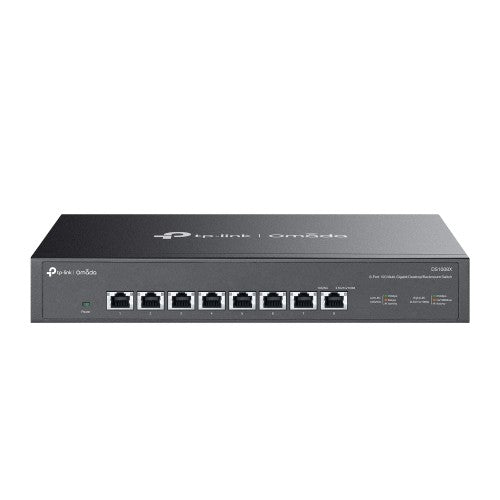

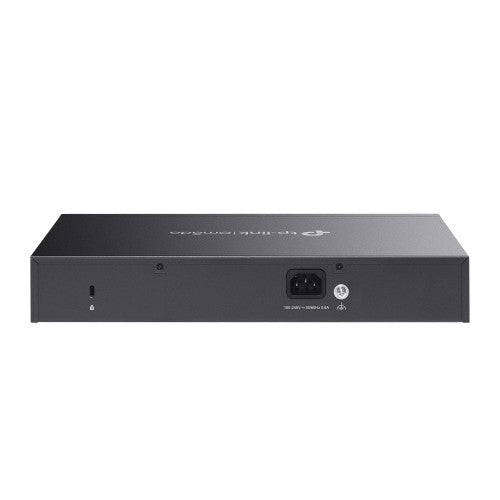

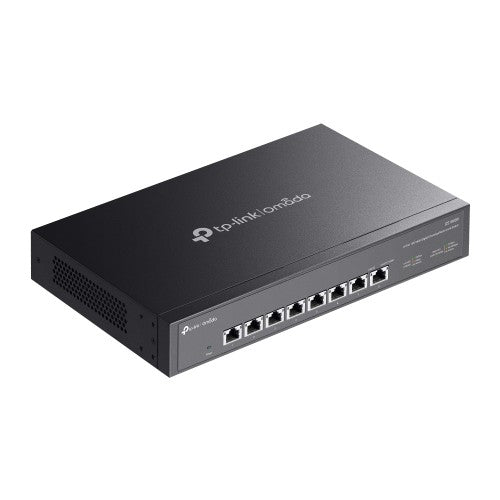

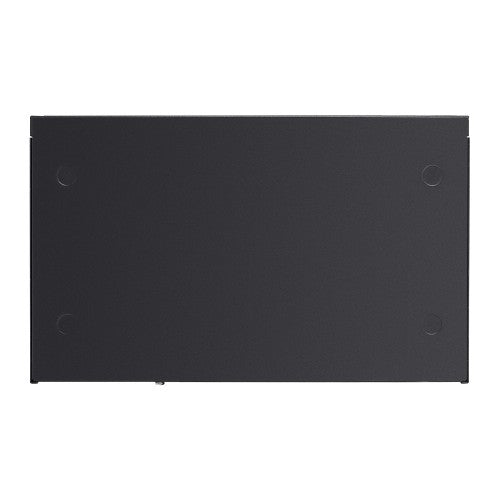

TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black
Part number:
DS1008X
Sale price
$349.71
Regular price
$359.99
Save
$10.28
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
- Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
- Plug and Play. No configuration or central management required
Description
Omada 8Port 10G MultiGigabit SwitchPORT: 8 10G RJ45 PortsSPEC: 1U 13inch Rackmountable Steel CaseFEATURE: Plug and PlaySpecifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 119.04 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Plug and Play | Yes |
| Packet buffer memory | 12 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 31.2 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.8 A |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 11.6" (294 mm) |
| Depth | 7.09" (180 mm) |
| Height | 1.73" (44 mm) |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | Power |
| Rubber feet | Yes |
| Packaging data | |
| Rubber feet | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Indication | |
| LED indicators | Activity, Link, Power |
| Other features | |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
