3x Gigabit Ethernet Ports, 12V DC / 24V Passive PoE, IP65, 1000m, IEEE 802.11 a/b/g/n/ac, 5 GHz: Up to 867 Mbps
TP-Link

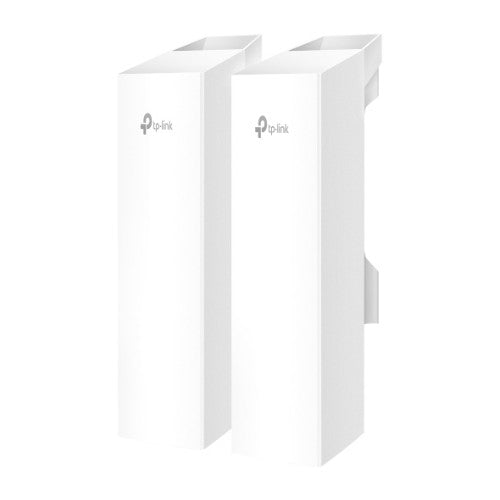

TP-Link EAP211-BRIDGE KIT bridge/repeater Network bridge 867 Mbit/s White
Part number:
EAP211-BRIDGE KIT
Sale price
$91.10
Regular price
$122.99
Save
$31.89
26%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
- Ideal for long-range wireless transmission up to 1 km.*2
- Auto-pairing and agile LEDs for efficient deployment

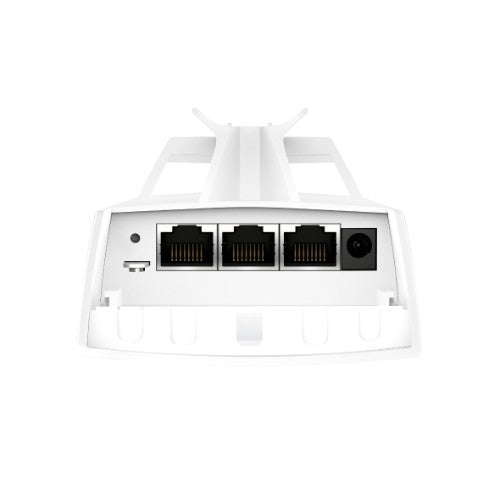

- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
- Supports Passive PoE for flexible deployment (adapter included)
Description
Omada 5GHz AC867 Indoor/Outdoor Access PointPORT: 3 Gigabit RJ45 PortSPEED: 867 Mbps at 5 GHzFEATURE:12V DC / 24V Passive PoE Power Adapter is not included, 2 Internal Antennas, Wireless Bridge, Mesh, MUMIMO, Beamforming, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada AppSpecifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 39370.1" (1000 m) |
| Antenna | |
| Antenna gain level (max) | 7 dBi |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Wireless LAN features | |
| Frequency band | 5 GHz |
| Antenna gain level (max) | 7 dBi |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Antenna type | 2x2 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5 GHz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Cabling technology | 10/100/1000Base-T(X) |
| Management features | |
| Web-based management | Yes |
| LED indicators | Power |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | Power |

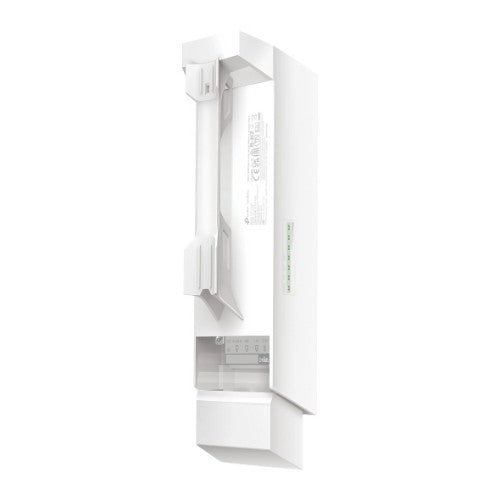

| Mounting type | Pole |
| Power | |
| Power source type | DC, PoE |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Technical details | |
| Product colour | White |
| Weight & dimensions | |
| Width | 8.82" (224 mm) |
| Depth | 3.11" (79 mm) |
| Height | 2.36" (60 mm) |
