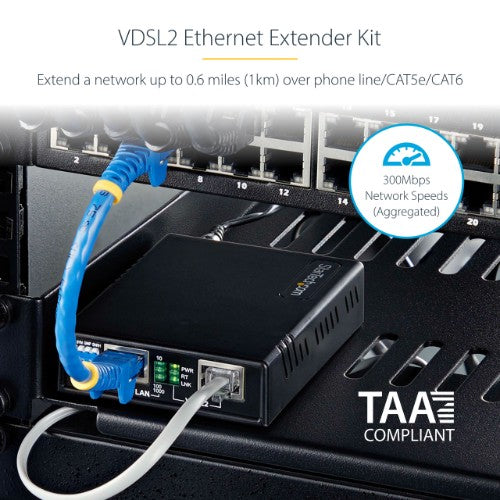

StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range Repeater, Replace for 110VDSLEXT
Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design
The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications

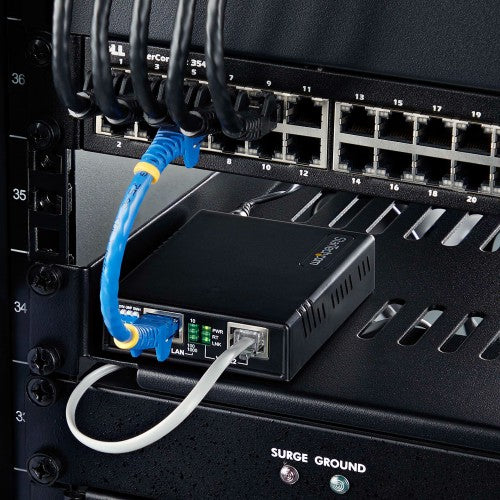

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
The StarTech.com Advantage
StarTech.com

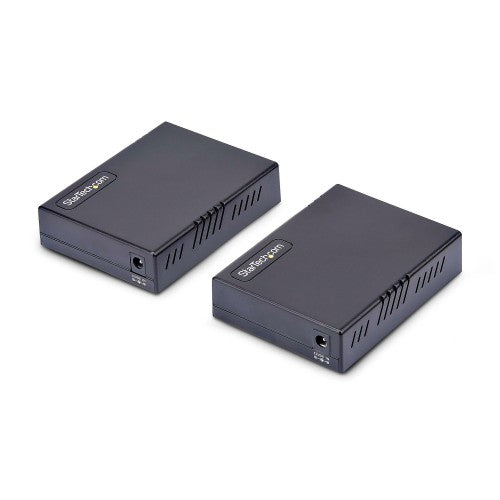

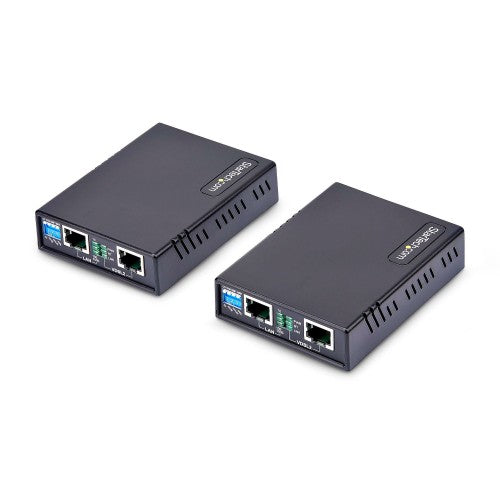

StarTech.com VDSL-LAN-EXTENDER-1G network extender Network repeater Black
Part number:
VDSL-LAN-EXTENDER-1G
Sale price
$509.93
Regular price
$521.99
Save
$12.06
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- VDSL2 EXTENDER: Extend a network over VDSL2, using UTP/single pair wire, CAT5e/6, or phone line cabling; Up to 0.6mi (1km); Up to 300Mbps (aggregated) at shorter distances; Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards
- 8 PROFILE CONFIGURATIONS: Customize the installation with DIP switch selectable settings; Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance

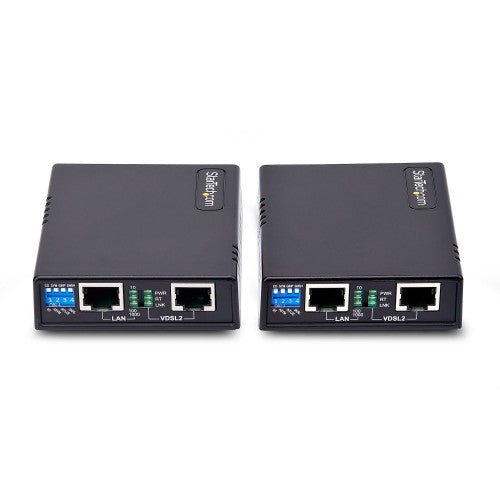

- INTUITIVE INDICATORS: Gigabit Ethernet Extender features four LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity

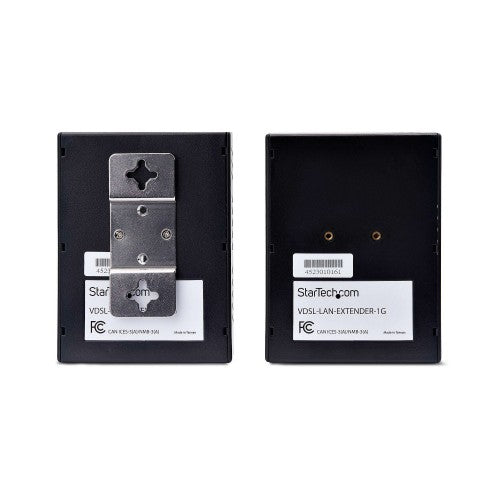

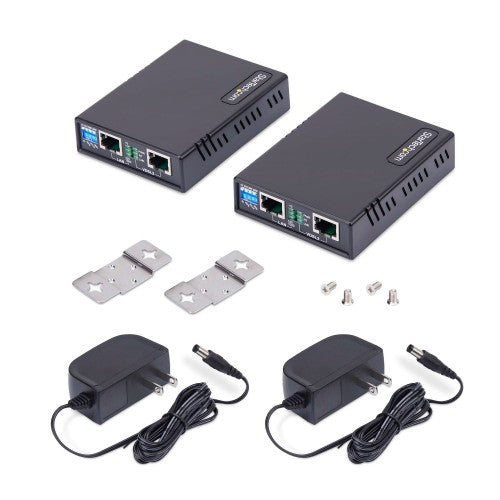

- VERSATILE MOUNTING OPTIONS: TAA-compliant Long Range LAN Booster can be mounted on a wall using the included mounting hardware, or placed on a shelf or other surface; Includes two power adapters, one for each VDSL Extender unit
- APPLICATIONS: Works with third-party VDSL2 IP DSLAMs in CPE (RT) mode; Extends a network to remote areas, supporting applications such as video surveillance/digital signage; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension
Description
Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTPExtend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design
The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications
The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| VLAN tagging | Yes |
| Type | Network repeater |
| Maximum transfer distance | 39370.1" (1000 m) |
| Data transfer rate | 300 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | RTL8685FB-CG |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Ports & interfaces | |
| DC-in jack | Yes |
| RJ-45 output ports | 2 |
| RJ-45 input ports | 2 |
| Design | |
| LED indicators | LAN, Power |
| Product colour | Black |
| Rack mounting | No |
| Quantity per pack | 2 pc(s) |
| Power | |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 2.91" (74 mm) |
| Depth | 3.82" (97 mm) |
| Height | 0.906" (23 mm) |
| Weight | 4.09 oz (116 g) |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 5.91" (150 mm) |
| Package depth | 7.09" (180 mm) |
| Package height | 5.12" (130 mm) |
| Package weight | 24.7 oz (700 g) |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| VLAN tagging | Yes |
| LED indicators | LAN, Power |
| Type | Network repeater |
| Maximum transfer distance | 39370.1" (1000 m) |
| Data transfer rate | 300 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | RTL8685FB-CG |
| Sustainability compliance | Yes |
| Compliance certificates | Trade Agreements Act (TAA) |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 12" (305 mm) |
| Master (outer) case length | 16.7" (425 mm) |
| Master (outer) case height | 20.3" (515 mm) |
| Products per master (outer) case | 15 pc(s) |
