Mini-ITX, 170.18 x 170.18 mm, Single Socket V1 (LGA 1700), Supports Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors
Asrock

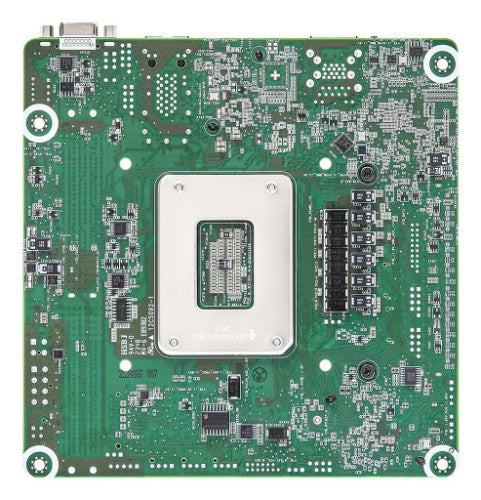

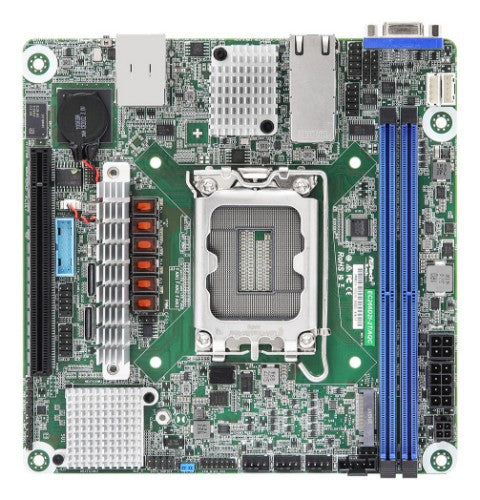

Asrock EC266D2I-2T/AQC motherboard Intel C266 LGA 1700 mini ITX
Part number:
EC266D2I-2T/AQC
$456.28
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports ATX PSU or 12V DC-in
- mini-ITX (6.7" x 6.7")
- Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- 2 DIMM slots (1DPC), supports DDR5 ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- 1 M.2 (PCIe4.0 x4)
- Up to 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Marvell AQC113
- Remote Management (IPMI)
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Motherboard form factor | mini ITX |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Motherboard form factor | mini ITX |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 4800 MHz |
| ECC сompatibility | ECC |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |

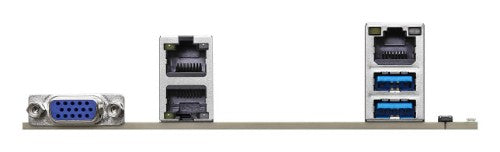

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Compatible operating systems | Microsoft Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.5 ( 64 bit) / 8.7 ( 64 bit) / 9.2 ( 64 bit) - CentOs 8.5 ( 64 bit) - SUSE Enterprise Linux Server 15 SP3 ( 64 bit) / 15 SP5 ( 64 bit) - Ubuntu 20.10 (64 bit) / 21.04 (64 bit) / 22.04.2 ( 64 bit) / 23.04 ( 64 bit) |
| Motherboard form factor | mini ITX |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 6.7" (170.2 mm) |
| Depth | 6.7" (170.2 mm) |
| Other features | |
| Compatible operating systems | Microsoft Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.5 ( 64 bit) / 8.7 ( 64 bit) / 9.2 ( 64 bit) - CentOs 8.5 ( 64 bit) - SUSE Enterprise Linux Server 15 SP3 ( 64 bit) / 15 SP5 ( 64 bit) - Ubuntu 20.10 (64 bit) / 21.04 (64 bit) / 22.04.2 ( 64 bit) / 23.04 ( 64 bit) |
