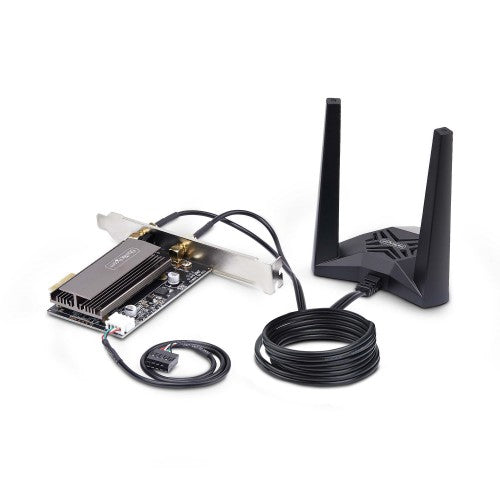

StarTech.com Wi-Fi 6E PCIe Network Card, Bluetooth 5.3, Magnetic Antenna Base, Tri-Band 802.11ax, AX5400 NIC, Windows/Linux
This Wi-Fi 6E Network Card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.
Tri-Band Wireless

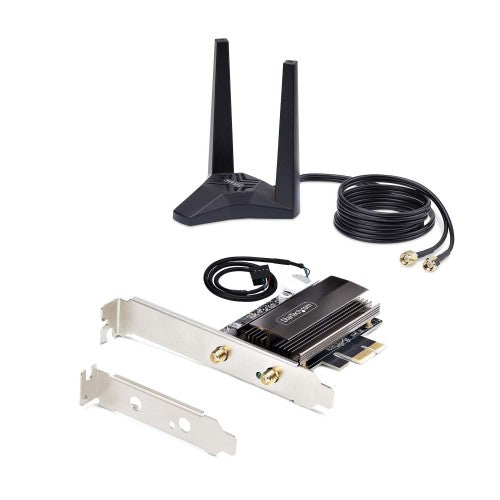

The PCIe 3.0 Wi-Fi card is backwards compatible with 802.11b/a/g/n/ac standards on both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands. It includes a low-profile bracket for small form-factor systems. The Wireless Network Adapter is supported on both Windows* and Linux operating systems.
Magnetized Antenna Base

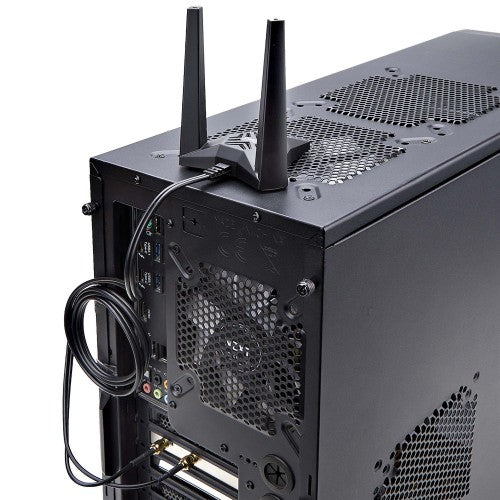

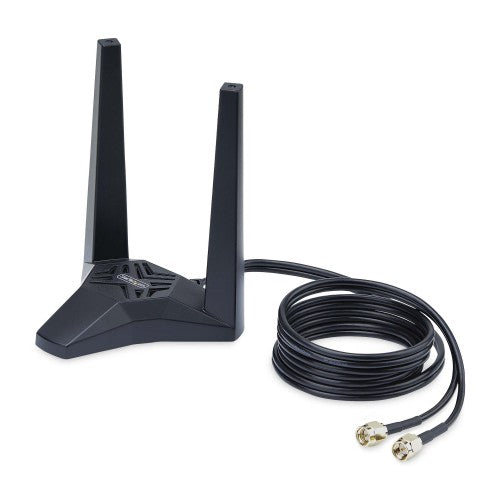

The antenna base is magnetized and equipped with a 3.6ft attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference. In addition, the base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces.
Bluetooth Connectivity
This card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption. To enable Bluetooth functionality, connect the 4-Pin IDC to 9-Pin USB Header (Bluetooth Cable - Included) to an available 9-Pin USB Header, located on the motherboard of the Host Computer.
Secure and Reliable
WPA3 offers secure encryption for Wi-Fi password safety. OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency. The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance.
*Windows 10 does not support the 6Ghz band
The StarTech.com Advantage
StarTech.com
StarTech.com PAX2235-WIFI-6E-CARD network card Internal WLAN / Bluetooth 2400 Mbit/s
Part number:
PAX2235-WIFI-6E-CARD
Sale price
$100.33
Regular price
$111.99
Save
$11.66
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- WIFI 6E NETWORK CARD: Add Wi-Fi 6E capability to a desktop, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)
- COMPATIBILITY: PCIe 3.0 Wi-Fi Card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands; Low-profile bracket included for small form-factor systems; NOTE: Windows 10 does not support the 6Ghz band
- ANTENNA BASE: Included freestanding magnetic base with 3.6ft attached cable enables flexible placement of the antennas, allowing for optimal signal reception and reduced interference; Features a rubber base for grip when used on non-metallic surfaces
- BLUETOOTH 5.3: Enables fast data transfer (2Mbps) with extended range, improved connection stability, and lower power consumption; Included USB header cable must connect to an available 9-Pin USB 2.0 header on the motherboard for Bluetooth functionality
- SECURE & RELIABLE: OFDMA and MU-MIMO boost network performance by reducing latency and enhancing data transfer efficiency; WPA3/WPA2 enhance the security of personal password protection; Metal heatsink aids heat dissipation for optimal performance
Description
Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequenciesThis Wi-Fi 6E Network Card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.
Tri-Band Wireless
The PCIe 3.0 Wi-Fi card is backwards compatible with 802.11b/a/g/n/ac standards on both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands. It includes a low-profile bracket for small form-factor systems. The Wireless Network Adapter is supported on both Windows* and Linux operating systems.
Magnetized Antenna Base
The antenna base is magnetized and equipped with a 3.6ft attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference. In addition, the base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces.
Bluetooth Connectivity
This card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption. To enable Bluetooth functionality, connect the 4-Pin IDC to 9-Pin USB Header (Bluetooth Cable - Included) to an available 9-Pin USB Header, located on the motherboard of the Host Computer.
Secure and Reliable
WPA3 offers secure encryption for Wi-Fi password safety. OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency. The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance.
*Windows 10 does not support the 6Ghz band
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Interface | WLAN / Bluetooth |
| Host interface | PCI |
| Connectivity technology | Wireless |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2400 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| Antenna | |
| Antenna | Yes |
| Frequency range | 2.4 - 6 GHz |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Cable length | 39.4" (1 m) |
| Sustainability compliance | Yes |
| Compliance certificates | Federal Communications Commission (FCC) |
| Network | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Security algorithms | AES, WPA2, WPA3 |
| Bluetooth version | 5.3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 1024-QAM, OFDMA |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| Full duplex | Yes |
| Frequency range | 2.4 - 6 GHz |
| Maximum data transfer rate | 2400 Mbit/s |
| Bluetooth | Yes |
| MU-MIMO | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Design | |
| Product colour | Black |
| Antenna | Yes |
| Internal | Yes |
| Mean time between failures (MTBF) | 50000 h |
| LED indicators | Yes |
| Component for | PC/Laptop |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 2.44" (62 mm) |
| Depth | 4.72" (120 mm) |
| Height | 0.709" (18 mm) |
| Weight | 7.05 oz (200 g) |
| Package width | 4.21" (107 mm) |
| Package depth | 5.91" (150 mm) |
| Package height | 5.35" (136 mm) |
| Package weight | 12.9 oz (365 g) |
| Security | |
| Security algorithms | AES, WPA2, WPA3 |
| Packaging data | |
| Package width | 4.21" (107 mm) |
| Package depth | 5.91" (150 mm) |
| Package height | 5.35" (136 mm) |
| Package weight | 12.9 oz (365 g) |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Performance | |
| Security algorithms | AES, WPA2, WPA3 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Cable length | 39.4" (1 m) |
| Other features | |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Cable length | 39.4" (1 m) |
| Bluetooth Low Energy (BLE) | Yes |
| Logistics data | |
| Master (outer) case width | 22" (560 mm) |
| Master (outer) case length | 18.5" (470 mm) |
| Master (outer) case height | 11.6" (295 mm) |
| Products per master (outer) case | 30 pc(s) |
