5-Port Gigabit Easy Smart Switch, Fanless, 2.82 W (220 V/ 50 Hz), 9.62 BTU/h
TP-Link

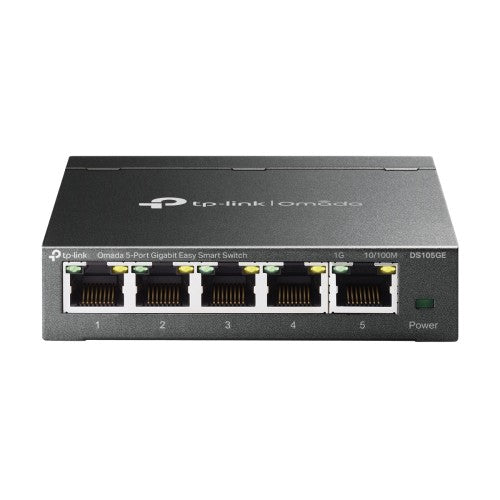

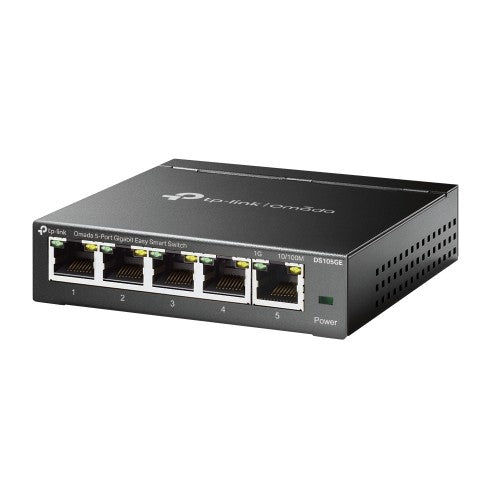

TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Part number:
DS105GE
$24.32
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management
Description
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 16 |
| Packet buffer memory | 1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 7.4 Mpps |
| Number of VLANs | 32 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Housing material | Steel |
| Rack mounting | No |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 2.82 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 9.62 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 3.94" (100 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Product colour | Black |
| Housing material | Steel |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Memory | |
| Packet buffer memory | 1 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Packaging data | |
| User guide | Yes |
| Cables included | Power |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
