218.4cm (86") 4K Ultra HD 3840 x 2160 IPS, 16.78M, 8ms, 178°/178°, 8000:1

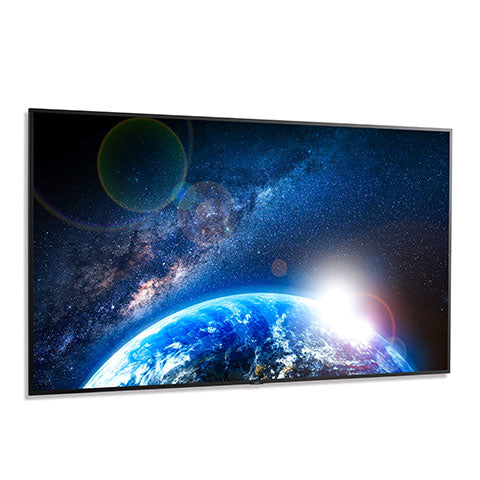

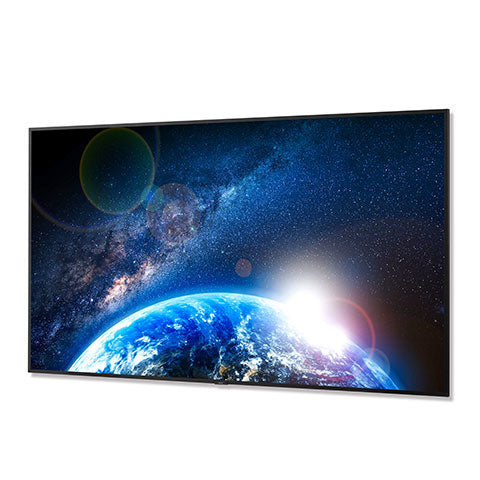

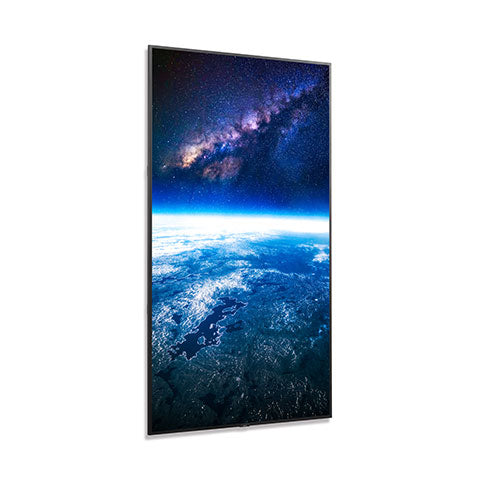

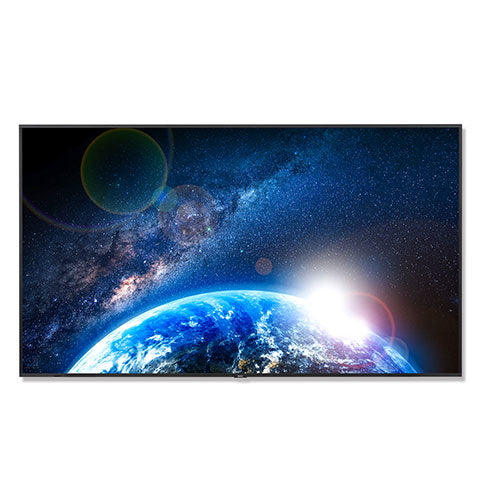

Sharp E868 signage display Digital signage flat panel 86" LED 350 cd/m² 4K Ultra HD Black
Part number:
E868
$2,975.79
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 218.4cm (86") 4K Ultra HD 3840 x 2160 IPS
- 8ms, 8000:1
- DisplayPort
Description
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colors |
| Panel type | IPS |
| LED backlighting type | Edge-Lit LED |
| Active display area (W x H) | 74.6 x 42" (1895 x 1066 mm) |
| Display technology | LED |
| Display diagonal | 86" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.0193 x 0.0193" (0.49 x 0.49 mm) |

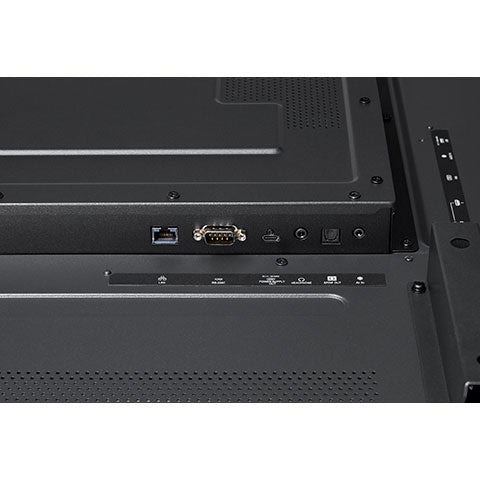

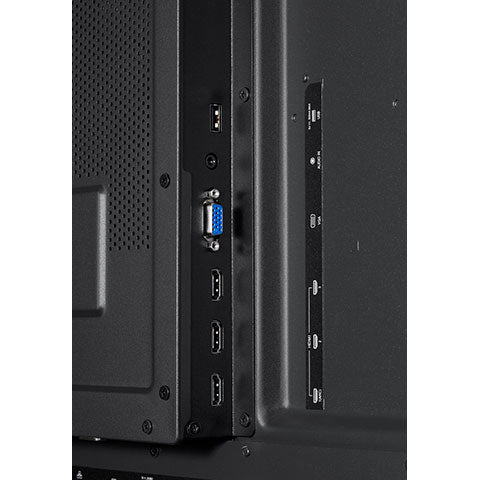

| Ports & interfaces | |
| USB port | Yes |
| RS-232C | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |

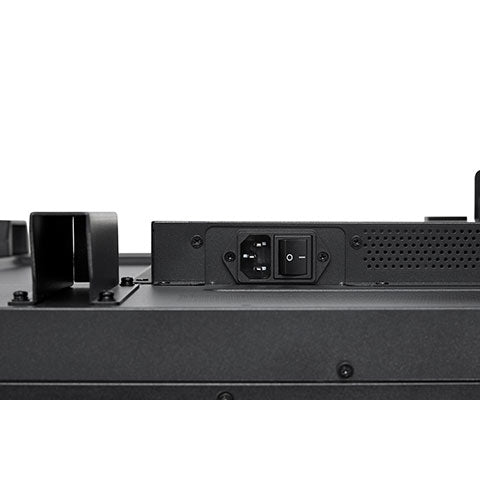

| Power | |
| Power consumption (typical) | 330 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 75.9" (1927.6 mm) |
| Depth | 3.28" (83.2 mm) |
| Height | 43.3" (1099.1 mm) |
| Weight | 101.4 lbs (46 kg) |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, DVI |
| Operational conditions | |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 118110.2 - 480000" (3000 - 12192 m) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| VESA mounting | Yes |
| Digital tuner | Yes |
| Tuner type | SB-11TM |
| Dimensions (W x D x H) with stand | 62.5 x 37.7 x 23.9" (1587 x 956.8 x 606 mm) |
| Screws included | Yes |
| Panel type | IPS |
| LED backlighting type | Edge-Lit LED |
| Packaging data | |
| Batteries included | Yes |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, DVI |
| Other features | |
| Digital tuner | Yes |
| Tuner type | SB-11TM |
| Dimensions (W x D x H) with stand | 62.5 x 37.7 x 23.9" (1587 x 956.8 x 606 mm) |
| Screws included | Yes |
| Panel type | IPS |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 118110.2 - 480000" (3000 - 12192 m) |
| Display technology | LED |
| Manual | Yes |
