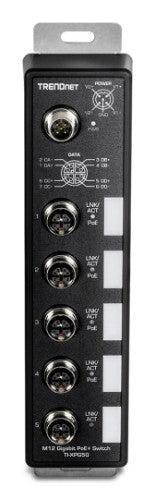

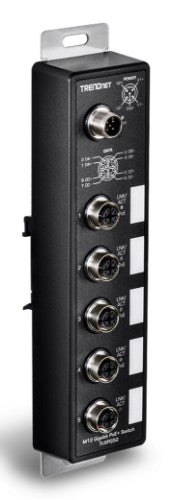

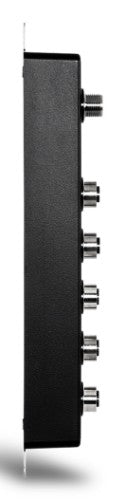

5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
Trendnet
Trendnet TI-XPG50 network switch Unmanaged Power over Ethernet (PoE)
Part number:
TI-XPG50
$463.69
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4 x M12 (X-code) Gigabit PoE+ ports
- 1 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- PoE power budget: 120W@56V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP67 outdoor rated metal housing
- 10Gbps switching capacity
- Operating temperature range of -40° – 75° C (-40° – 167° F)

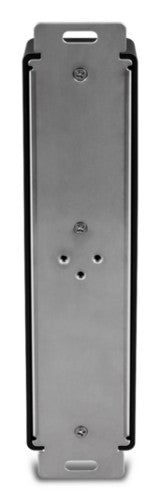

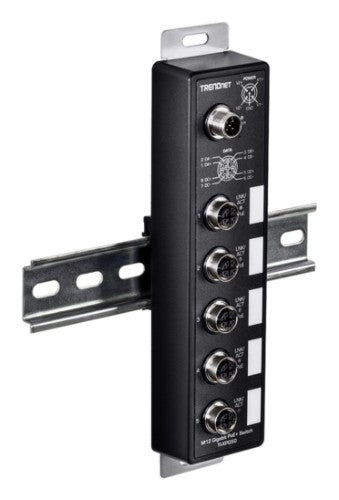

- Includes DIN-Rail and wall mount kits
- M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
- Power supply sold separately (models: TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP67 |
| DIN rail mounting | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE FCC |
| Performance | |
| Mean time between failures (MTBF) | 546613 h |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 5 W |
| DC input voltage | 48 - 56 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 1.97" (50 mm) |
| Height | 1.1" (28 mm) |
| Weight | 13 oz (368 g) |
| Technical details | |
| Mean time between failures (MTBF) | 546613 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE FCC |
| Indication | |
| LED indicators | Yes |
