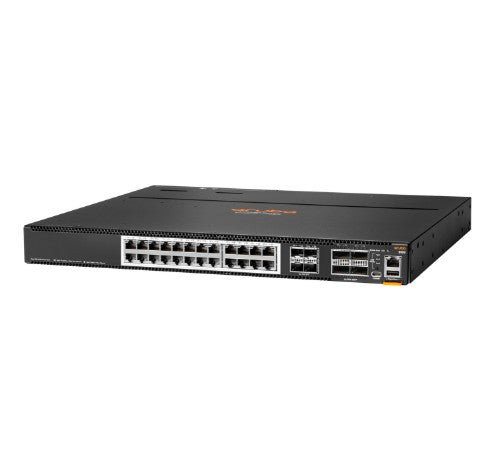

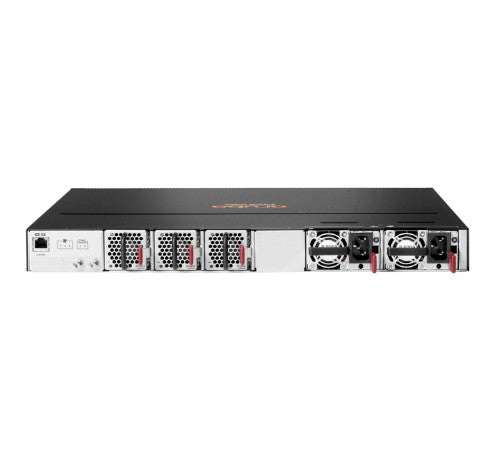

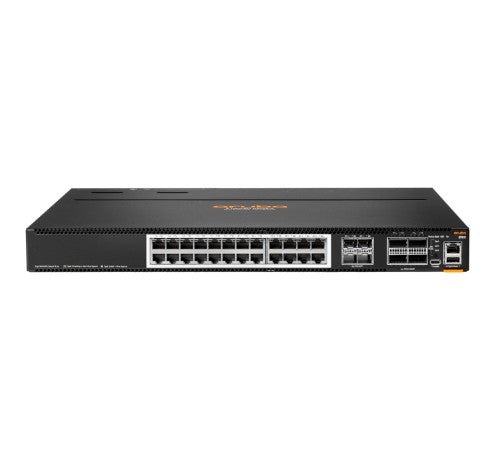

HPE Aruba Networking CX 8100 24x10G Base-T 4x10G SFP+ 4x40/100G QSFP28 FB 3Fan 2AC PSU, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Description

HPE Aruba Networking CX 8100 24x10G Base-T 4x10G SFP+ 4x40/100G QSFP28 FB 3Fan 2AC PSU. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 147456 entries, Switching capacity: 1360 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/USB Type-C
QSFP28 ports quantity	4
USB Type-A ports quantity	1
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	1024
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,2500,5000,10000 Mbit/s
10G support	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Data transmission
Packet buffer memory	32 MB
MAC address table	147456 entries
Switching capacity	1360 Gbit/s
Jumbo frames support	Yes
Number of VLANs	1024
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv2c, SNMPv3
Routing protocols	BGP, BGP4, OSPF, RIP-2, RIPng, VRRP
Design
Form factor	1U
Stackable	No
Rack mounting	Yes
Airflow direction	Front-to-back airflow
Number of fans	3 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	1800 MHz
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Processor model	ARM Cortex-A72
Packet buffer memory	32 MB
Stackable	No
Power
Power consumption (max)	400 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Heat dissipation	1364 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	1024
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	16" (406.4 mm)
Height	1.73" (44 mm)
Weight	18.3 lbs (8.3 kg)
Technical details
Form factor	1U
Stackable	No
Processor frequency	1800 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	32 MB
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Other features
Ethernet LAN data rates	1000,2500,5000,10000 Mbit/s
