26-Port Hardened Industrial Gigabit DIN-Rail Switch
Trendnet

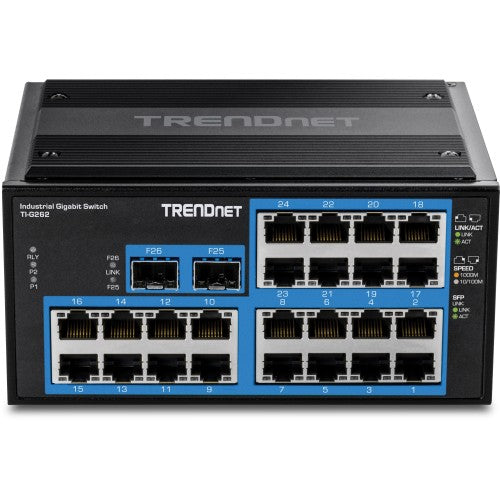

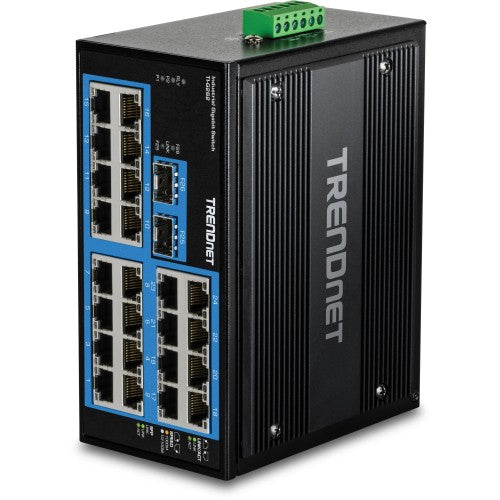

Trendnet TI-G262 network switch Gigabit Ethernet (10/100/1000)
Part number:
TI-G262
Sale price
$537.42
Regular price
$549.99
Save
$12.57
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24 x Gigabit ports
- 2 x Gigabit SFP ports
- 52Gbps switching capacity
- Hardened IP30 rated metal switch

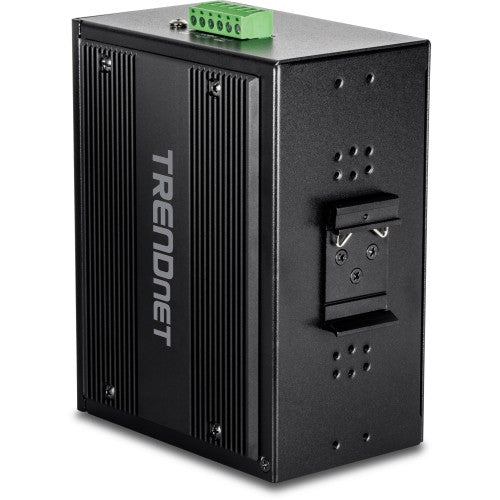

- Includes DIN-Rail and wall mounts
- Extreme -40° – 75° C (-40° – 167° F) operating temperature range

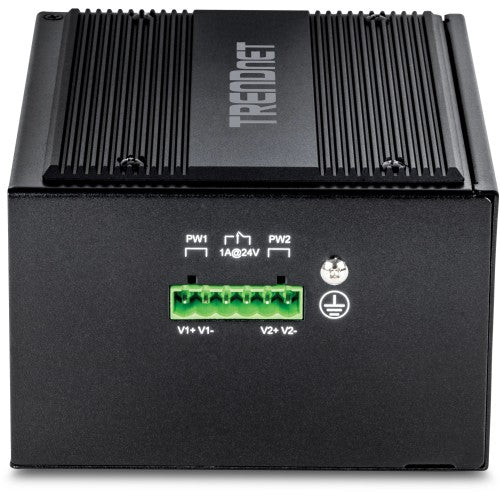

- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-M6024, TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s Industrial Gigabit DIN-Rail Switches feature a rugged IP30 rated metal enclosure and are designed to work in the harshest networking environments. This Industrial Unmanaged Switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and gigabit SFP ports for long distance fiber networking applications.Specifications
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | No |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 38.69 Mpps |
| Design | |
| LED indicators | Yes |
| Certification | CE FCC LVD |
| Performance | |
| Mean time between failures (MTBF) | 520000 h |
| Packet buffer memory | 0.5 MB |
| Power | |
| Power consumption (max) | 10.64 W |
| DC input voltage | 12 - 56 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 6.42" (163 mm) |
| Depth | 4.72" (120 mm) |
| Height | 3.03" (77 mm) |
| Weight | 33 oz (936 g) |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Mean time between failures (MTBF) | 520000 h |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Certification | CE FCC LVD |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
