Intel Xeon w3-2425, 2x 16 GB RDIMM DDR5, 1x 1 TB SSD M.2, NVIDIA T1000 8GB, Card Reader, Wi-Fi, Bluetooth, Ethernet, USB-A, USB-C, 1000 W, 165 x 453.9 x 446 mm, Windows 11 Pro for Workstations, English
Powered for modern businesses, the brand-new ThinkStation P5 features dependable power, performance and security at its best. The up to 1 Intel Xeon W-2400 series processor supports up to 24 cores and delivers top-notch productivity in any workspace. Its HD Realtek audio and 1.5W speaker
bring massive, detailed soundstage that takes online streaming and conferencing to the next level. Security features, including the Discrete TPM 2.0 chip, Kensington security slot and chassis intrusion switch provide end-to-end protection against device and data theft.
Whether working from remote job locations or a corporate space, the Intel Wi-Fi 6E feature enables consistent speed and strong bandwidth at all times. The front and rear connectivity ports, including USB-C 3.2 Gen 2 allow seamless data transfer and connectivity to monitors and peripherals.
With up to 512GB DDR5 memory support and up to 4TB storage, this workstation lets users multitask and switch between applications without having to worry about performance and speed.
It has up to 512 DDR5 GB memory, supports up NVIDIA RTX A6000 graphics, up to 1 Intel Xeon processor as well as up to 4TB SSD storage, which make it a powerful workstation that breezes through compute-intensive tasks or heavy-duty applications easily.
Lenovo

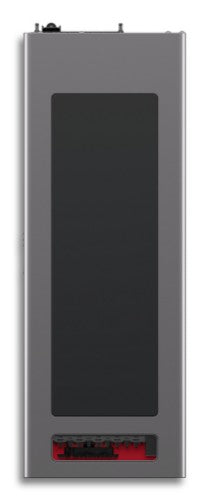

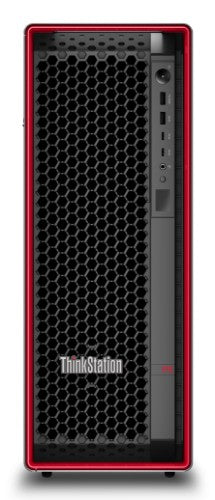

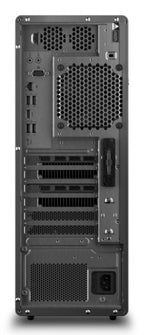

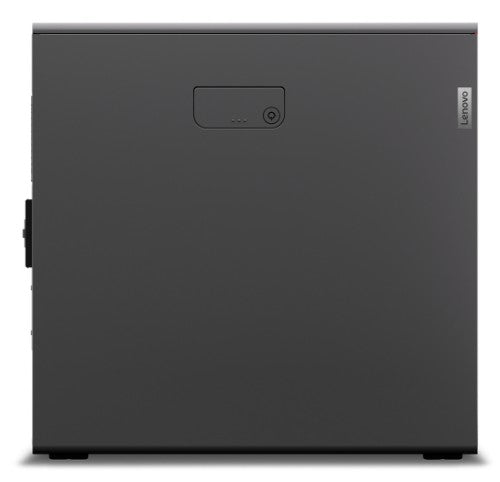

Lenovo ThinkStation P5 Intel Xeon W w3-2425 32 GB DDR5-SDRAM 1 TB SSD NVIDIA T1000 Windows 11 Pro for Workstations Tower Workstation Black, Red
Part number:
30GA004MUS
$3,785.71
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Up to one Intel® Xeon® w7-2495X with 24 cores
- Up to Windows® 11 Pro for Workstations
- Supports up to two NVIDIA® RTX 5000 Ada Generation or two NVIDIA® RTX A6000
- Up to 512GB, 8 DDR5 DIMM slots
- Up to 10 drives (3x 3.5" SATA HDD + 7x M.2 SSD)
Description
ThinkStation P5Powered for modern businesses, the brand-new ThinkStation P5 features dependable power, performance and security at its best. The up to 1 Intel Xeon W-2400 series processor supports up to 24 cores and delivers top-notch productivity in any workspace. Its HD Realtek audio and 1.5W speaker
bring massive, detailed soundstage that takes online streaming and conferencing to the next level. Security features, including the Discrete TPM 2.0 chip, Kensington security slot and chassis intrusion switch provide end-to-end protection against device and data theft.
Whether working from remote job locations or a corporate space, the Intel Wi-Fi 6E feature enables consistent speed and strong bandwidth at all times. The front and rear connectivity ports, including USB-C 3.2 Gen 2 allow seamless data transfer and connectivity to monitors and peripherals.
With up to 512GB DDR5 memory support and up to 4TB storage, this workstation lets users multitask and switch between applications without having to worry about performance and speed.
It has up to 512 DDR5 GB memory, supports up NVIDIA RTX A6000 graphics, up to 1 Intel Xeon processor as well as up to 4TB SSD storage, which make it a powerful workstation that breezes through compute-intensive tasks or heavy-duty applications easily.
Specifications
| Processor | |
|---|---|
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| Processor frequency | 3 GHz |
| Processor model | w3-2425 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.4 GHz |
| Processor socket | LGA 4677 (Socket E) |
| Processor threads | 12 |
| Processor cores | 6 |
| PCI Express slots version | 4.0, 5.0 |
| Processor family | Intel Xeon W |
| Performance cores | 6 |
| Efficient cores | 0 |
| Processor base power | 130 W |
| Maximum turbo power | 156 W |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Memory | |
| Non-ECC | No |
| ECC | Yes |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Maximum internal memory | 512 GB |
| Memory slots | 8x DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory channels | Quad-channel |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Total storage capacity | 1 TB |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA T1000 |
| On-board graphics card model | Not available |
| Number of discrete graphics cards | 1 |
| Discrete GPU manufacturer | NVIDIA |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wi-Fi standards | 802.11ad, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| LAN controller | Intel® I219-LM |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Line-out | Yes |
| Line-in | Yes |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 4.0, 5.0 |
| Technical details | |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 3.0 |
| Product colour | Black, Red |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Motherboard chipset | Intel W790 |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Compliance certificates | RoHS |
| Design | |
| Volume | 33 L |
| Product colour | Black, Red |
| Chassis type | Tower |
| Placement supported | Vertical |
| Performance | |
| BIOS type | UEFI |
| Audio chip | Realtek ALC897-Q |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Motherboard chipset | Intel W790 |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro for Workstations |
| Processor special features | |
| Intel® Turbo Boost Technology | 3.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency | 4.4 GHz |
| Power | |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply | 1000 W |
| Operational conditions | |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | 0 - 480000" (0 - 12192 m) |
| Certificates | |
| Certification | TCG certified, FIPS 140-2 certified, TCO Certified 9.0 |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions | |
| Volume | 33 L |
| Width | 6.5" (165 mm) |
| Depth | 17.9" (453.9 mm) |
| Height | 17.6" (446 mm) |
| Weight | 54 lbs (24.5 kg) |
| Packaging content | |
| Mouse included | Yes |
| Keyboard layout | QWERTY |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | No |
| Processor manufacturer | Intel |
| Built-in speaker(s) | Yes |
