Q670M D3H Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Phases Hybrid Digital VRM, up to 5600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Gigabyte

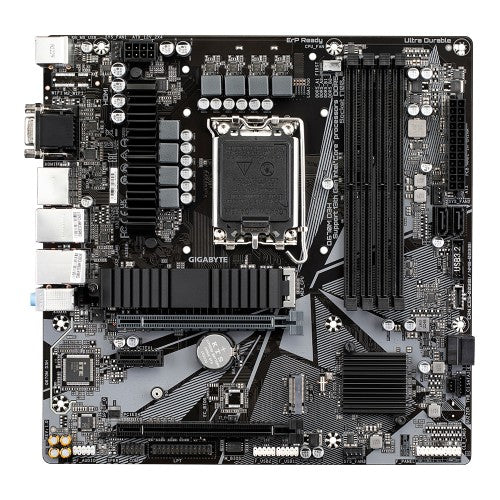

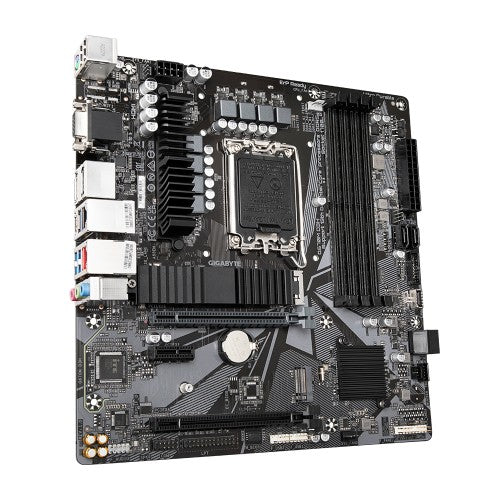

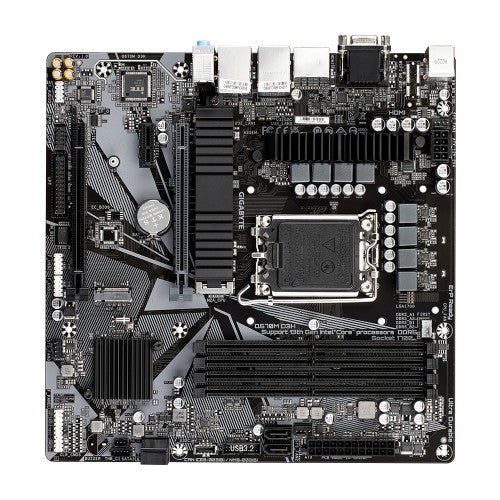

GIGABYTE Q670M D3H motherboard Intel Q670 LGA 1700 micro ATX
Part number:
Q670M D3H
$199.20
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 6+1+1 Phases Hybrid Digital VRM with MOS Heatsink
- Dual GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with One Thermal Guard
- Rear USB 3.2 Gen 2 Type-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Support Intel vPro Technology
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSpecifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 2 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Q670 |
| Supported processor sockets | LGA 1700 |
| HDMI version | 2.1 |
| Cooling type | Active |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 128 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Q670 |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Supported processor sockets | LGA 1700 |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4000,4800,5200,5600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| DirectX version | 12.0 |

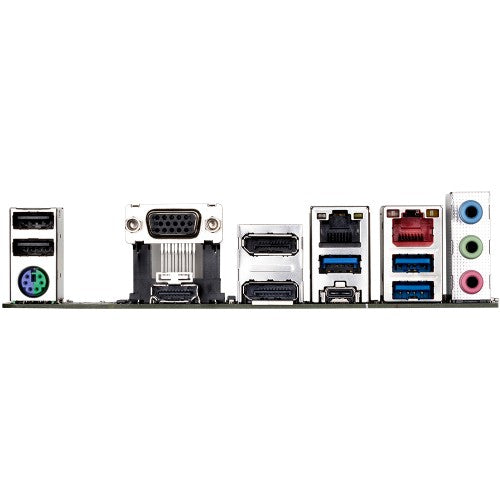

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Q670 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Supported processor sockets | LGA 1700 |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 10.4" (265 mm) |
| Package depth | 10.4" (265 mm) |
| Package height | 2.13" (54 mm) |
| Package weight | 2.25 lbs (1.02 kg) |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Drivers included | Yes |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 0.106 oz (3 g) |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.00247 oz (0.0700 g) |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 1.38" (35 mm) |
| Package width | 10.4" (265 mm) |
| Package depth | 10.4" (265 mm) |
| Package height | 2.13" (54 mm) |
| Package weight | 2.25 lbs (1.02 kg) |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Batteries included | Yes |
| Other features | |
| Height | 1.38" (35 mm) |
| Package width | 10.4" (265 mm) |
| Package depth | 10.4" (265 mm) |
| Package height | 2.13" (54 mm) |
| Package weight | 2.25 lbs (1.02 kg) |
