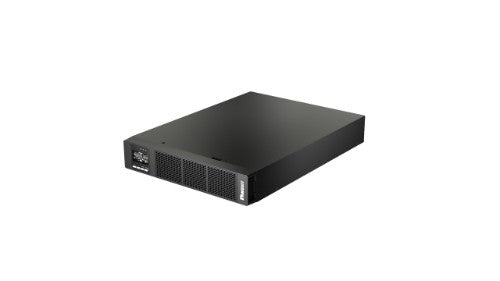

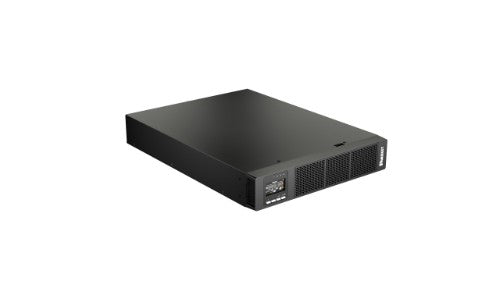

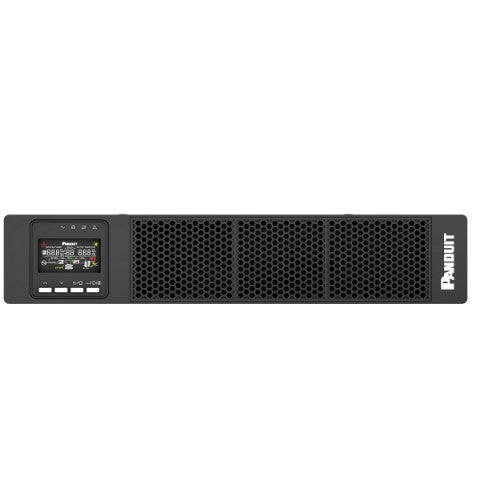

SmartZone UPS 3kVA

Description

SMARTZONE UPS, 3kVA, 2U, 230V, VRLA, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card & Rail Kit

Specifications

Power
Output frequency	50/60 Hz
Output power factor	1
Output power	3000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
Efficiency (On-line mode)	92%
Charging current	2 A
Efficiency (ECO mode)	96.5%
ECO mode	Yes
Input frequency	50/60 Hz

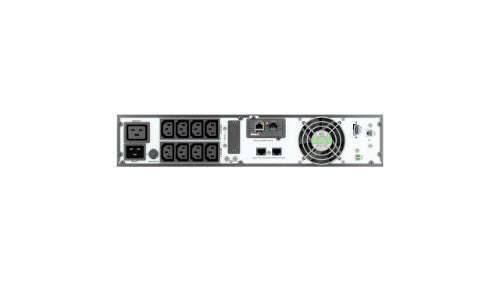

Ports & interfaces
Cable length	70.9" (1.8 m)
USB port	Yes
Serial interface type	RJ-45, RS-232
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Surge protection	Yes
Power protection features	Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power factor	1
Output power	3000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
Efficiency (On-line mode)	92%
Efficiency (ECO mode)	96.5%
ECO mode	Yes
Input frequency	50/60 Hz
Heat dissipation	890 BTU/h
Package type	Box
Charging current	2 A
Battery
Battery life (max)	5 year(s)
Number of batteries supported	4
Battery voltage	72 V
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	6
Battery recharge time	6 h
Typical backup time at half load	10.7 min
Typical backup time at full load	3.4 min
Hot-swap battery	Yes
Cold start	Yes
Charging current	2 A
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Cooling type	Active
Cable length	70.9" (1.8 m)
Built-in fan	Yes
Control type	Buttons
Display type	LCD + LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, UL ECOLOGO
Compliance certificates	CE, REACH, RoHS
Certificates
Compliance certificates	CE, REACH, RoHS
Packaging content
Manual	Yes
Cooling
Cooling type	Active
Built-in fan	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, UL ECOLOGO
Weight & dimensions
Package type	Box
Package width	21.9" (555 mm)
Package depth	28.7" (730 mm)
Package height	7.95" (202 mm)
Weight	53.8 lbs (24.4 kg)
Width	17.3" (440 mm)
Package weight	68.1 lbs (30.9 kg)
Height	3.41" (86.5 mm)
Depth	23.6" (600 mm)
Packaging data
Manual	Yes
Package type	Box
Package width	21.9" (555 mm)
Package depth	28.7" (730 mm)
Package height	7.95" (202 mm)
Package weight	68.1 lbs (30.9 kg)
