2kVA, 2U, 230V, VRLA, Single Phase, Double-Conversion On-Line Power Protection

Description

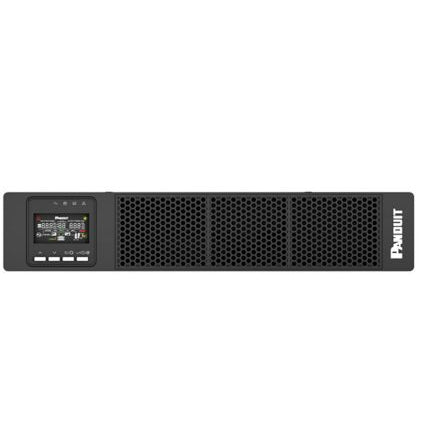

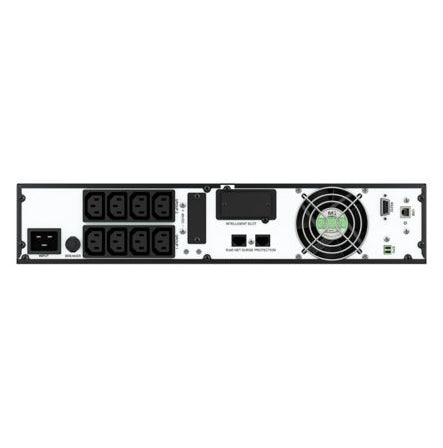

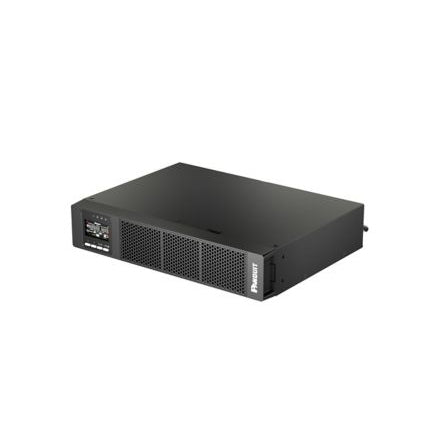

SMARTZONE UPS, 2kVA, 2U, 230V, VRLA, Single Phase, Double-Conversion On-Line Power Protection

Specifications

Power
Output frequency	50/60 Hz
Output power factor	1
Input power factor	0.98
Output power	2000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	2 A
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	2 kVA
Efficiency (On-line mode)	92%
Charging current	2 A
Efficiency (ECO mode)	96%
ECO mode	Yes
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	70.9" (1.8 m)
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45, RS-232, RS-485
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Power plug	NEMA 5-20R
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Surge protection	Yes
Noise level	55 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power factor	1
Input power factor	0.98
Output power	2000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	2 A
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	55 dB
Crest factor	3:1
Output power capacity	2 kVA
Efficiency (On-line mode)	92%
Efficiency (ECO mode)	96%
ECO mode	Yes
Input frequency	40 - 70 Hz
Heat dissipation	593 BTU/h
Charging current	2 A
Battery
Battery life (max)	5 year(s)
Battery voltage	48 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	4
Battery recharge time	6 h
Typical backup time at half load	17 min
Typical backup time at full load	8 min
Hot-swap battery	Yes
Cold start	Yes
Charging current	2 A
Replacement battery cartridge	UVC048
Design
International Protection (IP) code	IP20
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Cable length	70.9" (1.8 m)
Built-in fan	Yes
Control type	Buttons
Display type	LCD + LED
Extended battery module rack capacity	2U
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, UL ECOLOGO
Compliance certificates	CE, REACH, RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	21.9" (555 mm)
Package depth	23.2" (590 mm)
Package height	7.95" (202 mm)
Weight	47 lbs (21.3 kg)
Width	17.3" (440 mm)
Package weight	60.8 lbs (27.6 kg)
Height	3.41" (86.5 mm)
Depth	18.1" (460 mm)
Packaging data
Package width	21.9" (555 mm)
Package depth	23.2" (590 mm)
Package height	7.95" (202 mm)
Package weight	60.8 lbs (27.6 kg)
