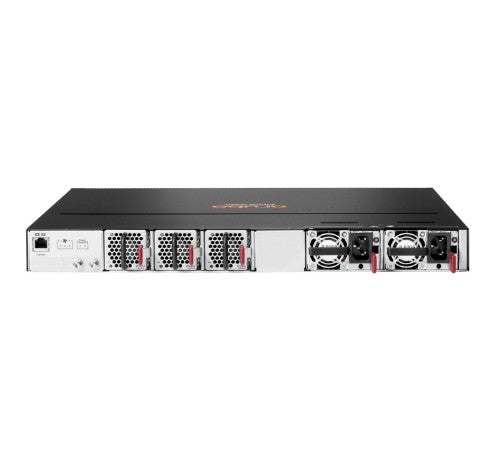

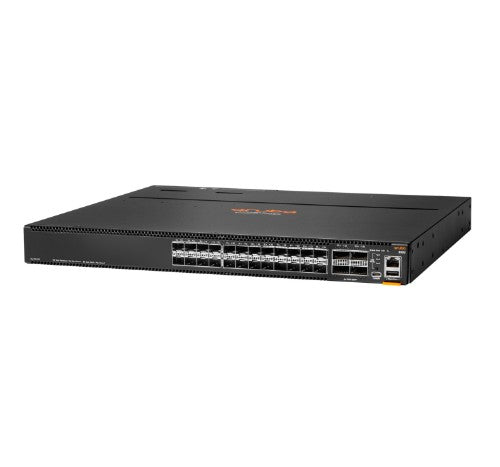

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU, Managed, L3, Rack mounting, 1U
HPE
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Managed L3 1U
Part number:
R9W86A#B2B
Sale price
$20,474.77
Regular price
$22,200.00
Save
$1,725.23
8%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 147456 entries, Switching capacity: 1280 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 32 MB |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Technical details | |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| USB Type-A ports quantity | 1 |
| Data transmission | |
| Packet buffer memory | 32 MB |
| MAC address table | 147456 entries |
| Switching capacity | 1280 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP, BGP4, OSPF, RIPng |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Design | |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Power | |
| Power consumption (max) | 375 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 181102.4" (0 - 4600 m) |
| Heat dissipation | 1275 BTU/h |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 18 lbs (8.16 kg) |
| Other features | |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
