-4.8 dB 3-Way Splitter 600-4,000 MHz (50 Ohm)

Description

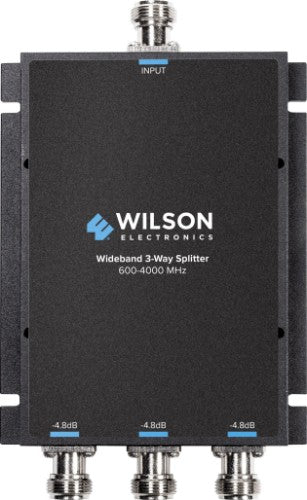

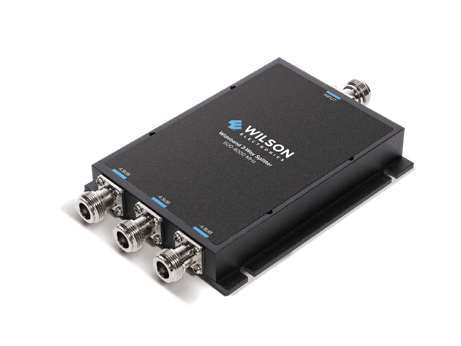

This 3-way splitter (859112) is used with WilsonPro cellular repeaters to split a signal into 3 equal parts, allowing 3 antennas to be run from a single cable and receive similar strength. It is required in order to add C-Band antennas (311245, 311243, 311242) and repeaters to an existing system. Designed to be used with WilsonPro 1337 C-Band products, this splitter is compatible with frequencies from 600 to 4,000 MHz. This IP65 indoor and outdoor rated splitter supports C-Band, T-Mobile band 71, and is Pro 710i compatible. As a high-performance splitter, it features low insertion loss and low VSWR (voltage standing wave ratio). It is equipped with N-Female connectors. Replaces previous version of 3-way splitter (859980).

Specifications

Technical details
Device type	Cellular network splitter
Data network	Not supported
Design
Device type	Cellular network splitter
Product colour	Black
Suitable for outdoor use	Yes
Suitable for indoor use	Yes
Ethernet LAN features
Ethernet LAN	No
Wireless LAN features
Wi-Fi	No
Mobile network
Data network	Not supported
Performance
Antenna connector type	N-type
Antenna
Antenna connector type	N-type
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Weight & dimensions
Weight	13.1 oz (371.9 g)
Width	6.25" (158.8 mm)
Depth	3.88" (98.4 mm)
Height	1.37" (34.9 mm)
