LCD, 75", Touch, 3840 x 2160, 350 cd/m², 5000:1, Bluetooth 5.0, IEEE802.11ac/n/a/b
The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
Sharp

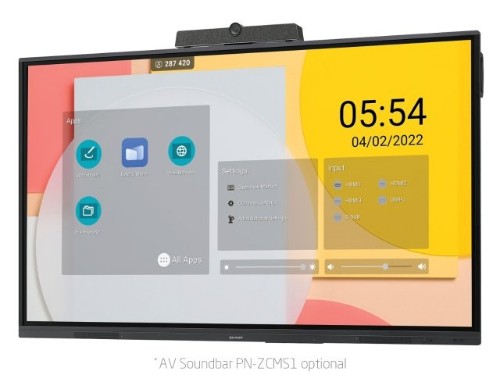

Sharp PNL752B Interactive flat panel 75" LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Android 16/7
Part number:
PN-L752B
Sale price
$3,635.37
Regular price
$5,629.00
Save
$1,993.63
35%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Pen-On-Paper user experience – Zero Bonding and Sharp’s PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points
- Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications
- Latest BYOD wireless collaboration – wirelessly share content from any device via the integrated Android PC or utilise the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions
- Maximum flexibility – provides exceptional freedom of use to meet the demands of even the most challenging corporate environments using USB-C, HDMI or VGA connectors
- ‘Secure by design’ – graded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need
Description
Enjoy a more natural way of workingThe BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Panel type | VA |
| Number of simultaneous touchpoints | 20 |
| LED backlighting type | Direct-LED |
| Touchscreen | Yes |
| Active display area (W x H) | 65 x 36.5" (1650.2 x 928.3 mm) |
| Display technology | LCD |
| Display diagonal | 75" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 74.5" (189.3 cm) |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1360 x 768 (WXGA), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 720, 3840 x 2160, 4096 x 2160 |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Touchscreen technology | Hybrid Precision |
| Surface hardness | 8 |
| Haze rate | 8% |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 100 Mbit/s |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 8 |
| OPS module slot | Yes |
| HDMI input ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 0.661" (1.68 cm) |
| Bezel width (side) | 0.661" (1.68 cm) |
| Bezel width (bottom) | 1.8" (4.57 cm) |
| Product colour | Black |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Corporate |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| Writing tools | Finger, Passive pen |
| Wi-Fi | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| Power | |
| Power consumption (max) | 400 W |
| Power consumption (typical) | 230 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| Operating system version | 9 |
| Packaging data | |
| Package width | 73.3" (1863 mm) |
| Package depth | 8.86" (225 mm) |
| Package height | 45.5" (1155 mm) |
| Package weight | 136.7 lbs (62 kg) |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Bezel width | 1.8" (4.57 cm) |
| Panel type | VA |
| Depth (without stand) | 3.37" (85.7 mm) |
| Number of simultaneous touchpoints | 20 |
| Weight (without stand) | 109.1 lbs (49.5 kg) |
| LED backlighting type | Direct-LED |
| Height (without stand) | 40.1" (1019.8 mm) |
| OPS slot | 1 |
| Internal memory | 4000 MB |
| Compliance certificates | CE, REACH, RoHS |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Bezel width | 1.8" (4.57 cm) |
| Panel type | VA |
| Depth (without stand) | 3.37" (85.7 mm) |
| Number of simultaneous touchpoints | 20 |
| Weight (without stand) | 109.1 lbs (49.5 kg) |
| Height (without stand) | 40.1" (1019.8 mm) |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| USB 2.0 ports quantity | 1 |
| Power consumption (max) | 400 W |
| Mobile operating systems supported | Android |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Display technology | LCD |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Bezel width (top) | 0.661" (1.68 cm) |
| Bezel width (side) | 0.661" (1.68 cm) |
| Bezel width (bottom) | 1.8" (4.57 cm) |
| Backlight type | LED |
| Audio output | 1 x 3,5 mm jack |
| Audio input | 1 x 3,5 mm jack |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| OPS module slot | Yes |
