802.11 a/b/g/n/ac/ax, Bluetooth, DC 5V, 99 x 11 x 77 mm, Black

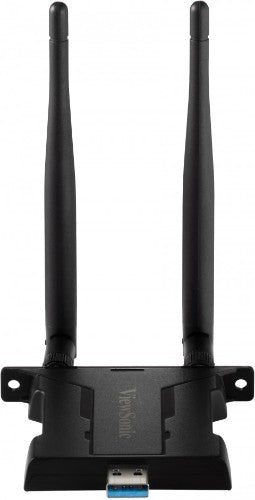

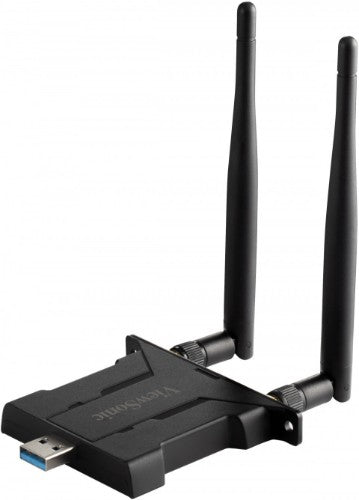

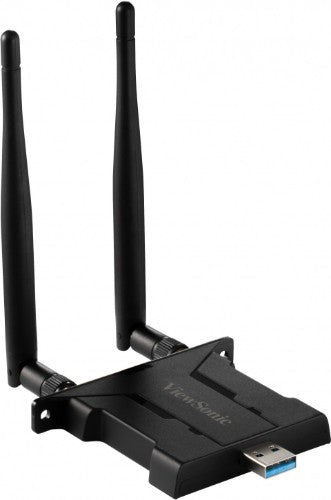

ViewSonic Wireless Module for ViewBoard and Presentation Display with Wi-fi 6 connectivity
OVERVIEW
The ViewSonic VB-WIFI-005 wireless module delivers a fast wireless internet connection for ViewBoard and Presentation Display*. It supports dual-frequency 2.4GHz and 5GHz bandwidth, along with Wifi 6 (802.11ax standard). *Compatible with selected models, please check with your local sales representatives.
Faster Connections
An optional Wifi module for the ViewBoards and Presentation Display* to help run lessons smoothly and get a more interactive discussion in the office. Wifi 6 offers faster internet speeds for the ever more bandwidth-demanding applications like video conferences, live streaming, and connected device networks. *Compatible with selected models, please check with your local sales representatives.
Dual Band Wireless Support
Supporting both 2.4 and 5 GHz dual-band wireless transmission helps users adjust settings to their needs. A 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at a shorter range. Smoothly streams multimedia content such as videos and images without any delays.
Viewsonic
Viewsonic VB-WIFI-005 network card WLAN / Bluetooth
Part number:
VB-WIFI-005
$110.87
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
VB-WIFI-005ViewSonic Wireless Module for ViewBoard and Presentation Display with Wi-fi 6 connectivity
OVERVIEW
The ViewSonic VB-WIFI-005 wireless module delivers a fast wireless internet connection for ViewBoard and Presentation Display*. It supports dual-frequency 2.4GHz and 5GHz bandwidth, along with Wifi 6 (802.11ax standard). *Compatible with selected models, please check with your local sales representatives.
Faster Connections
An optional Wifi module for the ViewBoards and Presentation Display* to help run lessons smoothly and get a more interactive discussion in the office. Wifi 6 offers faster internet speeds for the ever more bandwidth-demanding applications like video conferences, live streaming, and connected device networks. *Compatible with selected models, please check with your local sales representatives.
Dual Band Wireless Support
Supporting both 2.4 and 5 GHz dual-band wireless transmission helps users adjust settings to their needs. A 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at a shorter range. Smoothly streams multimedia content such as videos and images without any delays.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN / Bluetooth |
| Host interface | USB |
| Connectivity technology | Wireless |
| USB connector form factor | Straight |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Antenna | |
| Antenna | Yes |
| Antenna type | 2x2 |
| Technical details | |
| Product colour | Black |
| Plug and Play | Yes |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Bluetooth version | 5.2 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth | Yes |
| Design | |
| Product colour | Black |
| Antenna | Yes |
| Certification | FCC, FCC ID, IC, IC ID, NCC |
| Plug and Play | Yes |
| Internal | No |
| Antenna type | 2x2 |
| Component for | PC |
| Antenna design | Internal |
| Power | |
| Output voltage | 5 V |
| Power consumption (typical) | 4.5 W |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.9" (99 mm) |
| Depth | 0.433" (11 mm) |
| Height | 3.03" (77 mm) |
| Weight | 1.06 oz (30 g) |
| Package width | 3.54" (90 mm) |
| Package depth | 0.63" (16 mm) |
| Package height | 6.18" (157 mm) |
| Package weight | 2.82 oz (80 g) |
| Packaging data | |
| Package width | 3.54" (90 mm) |
| Package depth | 0.63" (16 mm) |
| Package height | 6.18" (157 mm) |
| Package weight | 2.82 oz (80 g) |
| Performance | |
| Plug and Play | Yes |
| Certificates | |
| Certification | FCC, FCC ID, IC, IC ID, NCC |
| Other features | |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Antenna type | 2x2 |
