Intel LGA 1700, ATX Motherboard, 4 x DDR5, 1 x PCI-Ex16, 1 x PCI-Ex14, 4 x M.2, 7 x SATA, 10 x USB 3.2, 243.84 x 304.8 mm
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
MSI

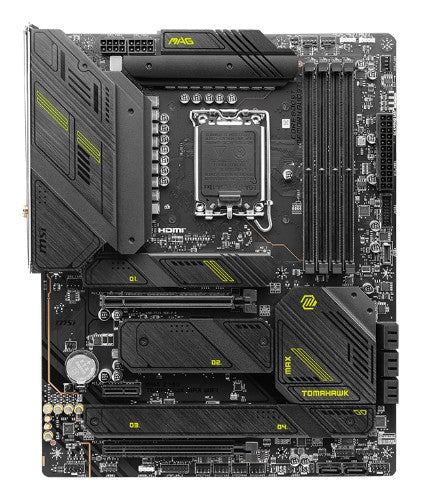

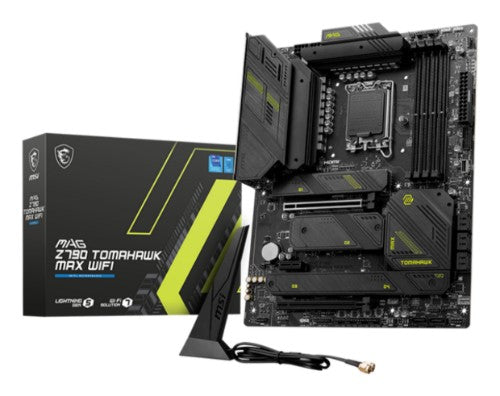

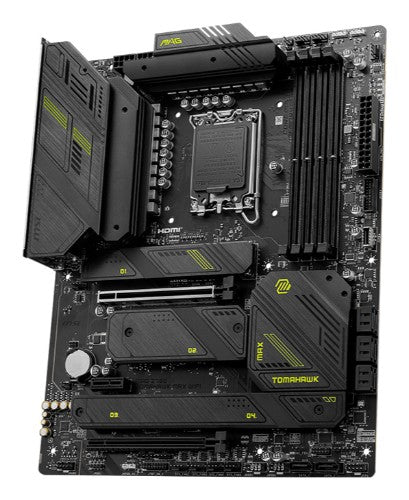

MSI Z790 TOMAHAWK MAX WIFI Intel Z790 LGA 1700 ATX
Part number:
Z790TOMMAXWI
Sale price
$297.83
Regular price
$299.99
Save
$2.16
1%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Description
MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® 14th Gen and 13th Gen Core processors.TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| RAID levels | 0, 5, 10 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Supported processor sockets | LGA 1700 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express |
| RAID levels | 0, 5, 10 |
| Internal storage capacity | 10 GB |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Supported processor sockets | LGA 1700 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| BIOS | |
| BIOS type | EFI AMI |
| BIOS memory size | 256 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 9.6" (243.8 mm) |
| Depth | 12" (304.8 mm) |
| Packaging content | |
| Cables included | SATA |
