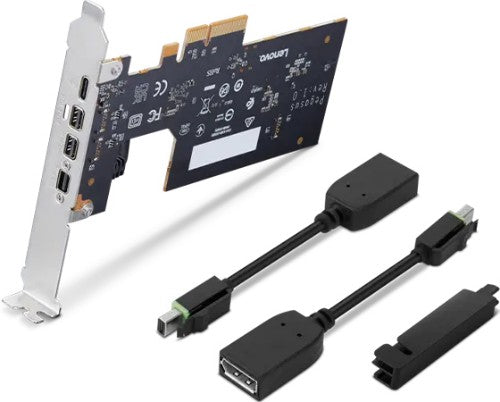

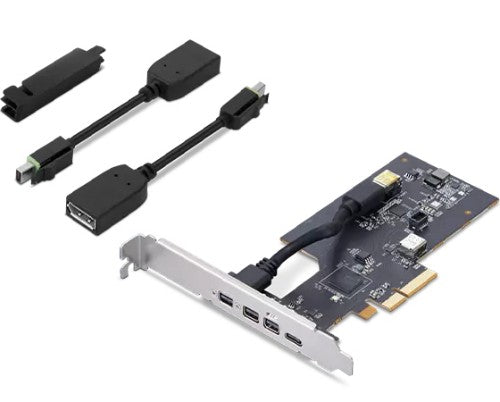

ThinkStation Thunderbolt 4 PCIe Expansion Card with HP Bracket
Lenovo
Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4
Part number:
4XF1L53431
Sale price
$219.92
Regular price
$282.99
Save
$63.07
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Custom x4 high profile PCIe add-in card
- 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports
- Utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports and 1 mini display port
- Will be installed in one of the Px family Workstations PCIe Slots
Description
The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card's internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Mini DisplayPort, Thunderbolt 4 |
| Host interface | PCIe |
| Host interface gender | Male |
| Technical details | |
| Hot-Plug support | Yes |
| Purpose | Server |
| Performance | |
| Hot-Plug support | Yes |
| Purpose | Server |
| Certificates | |
| Certification | BSMI，CE,Morocco，FCC,IC,VCCI |
| Design | |
| Hot-Plug support | Yes |
| Purpose | Server |
| Internal | Yes |
| Certification | BSMI，CE,Morocco，FCC,IC,VCCI |
| Cooling type | Passive |
| Power | |
| Power consumption (typical) | 45 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 5.7" (144.8 mm) |
| Depth | 2.71" (68.9 mm) |
| Height | 0.866" (22 mm) |
| Weight | 3.53 oz (100 g) |
| Package width | 6.97" (177 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 2.09" (53 mm) |
| Package weight | 14.1 oz (400 g) |
| Packaging data | |
| Package type | Box |
| Package width | 6.97" (177 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 2.09" (53 mm) |
| Package weight | 14.1 oz (400 g) |
| Packaging content | |
| Package type | Box |
