2.4GHz (1148 Mbps), 5GHz (4804Mbps), 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit PoE+, 220 x 220 x 32.5 mm
- High-Efficiency WiFi 6
- 2.5GE Wired Performance
- Long-Range Coverage
- Centralized Cloud Management
- PoE+ Powered
- Auto Channel Selection and Power Adjustment
- Omada Mesh Technology
TP-Link

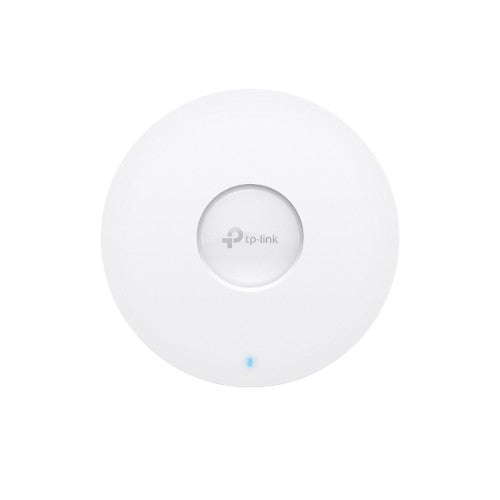

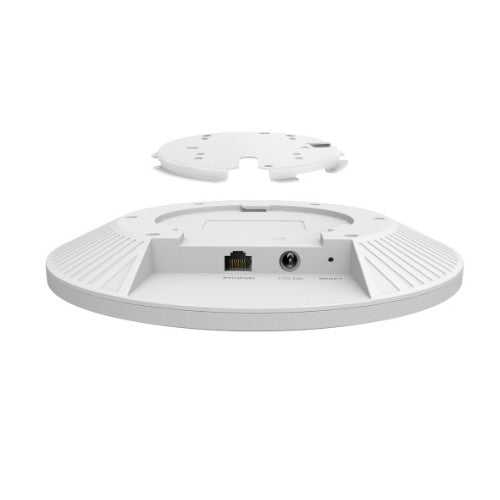

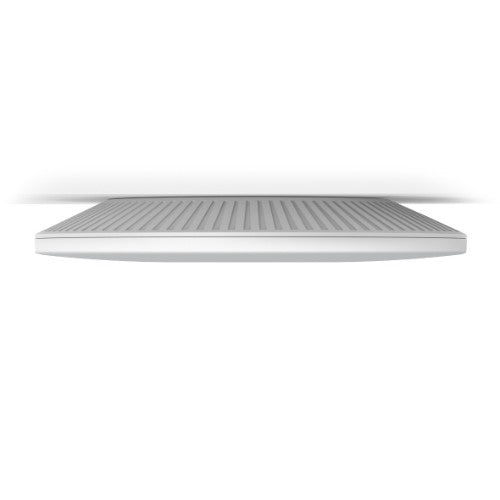

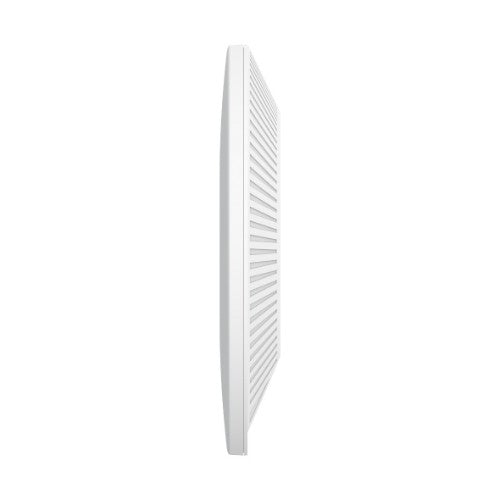

TP-Link Omada EAP683 LR wireless access point 6000 Mbit/s White Power over Ethernet (PoE)
Part number:
EAP683 LR
$160.35
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
- Integrates with Omada SDN platform for centralized management
- Advanced Features: Omada Mesh, Seamless Roaming, and more
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Description
- 4804 Mbps on 5 GHz +1148 Mbps on 2.4 GHz- High-Efficiency WiFi 6
- 2.5GE Wired Performance
- Long-Range Coverage
- Centralized Cloud Management
- PoE+ Powered
- Auto Channel Selection and Power Adjustment
- Omada Mesh Technology
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 510 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 6 GHz |
| Network | |
| Number of users | 510 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 510 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| Fast roaming | Yes |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| BeamForming | Yes |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Compliance certificates | CE, RoHS |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Software | |
| Automatic channel scanning | Yes |
| Access Control List (ACL) | Yes |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.28" (32.5 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
