40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28, 440 x 400 x 43.2 mm, 7.76 kg
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Netgear

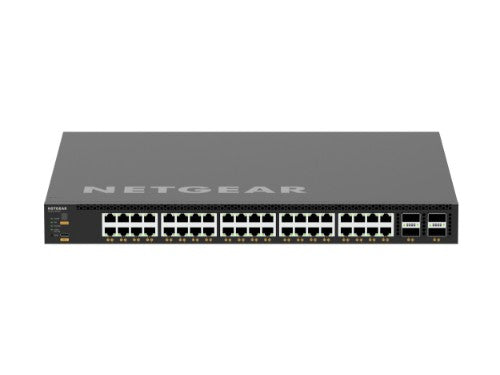

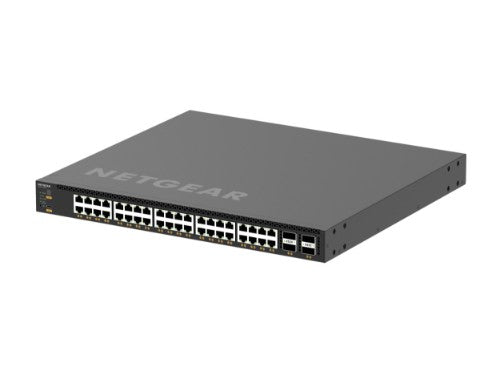

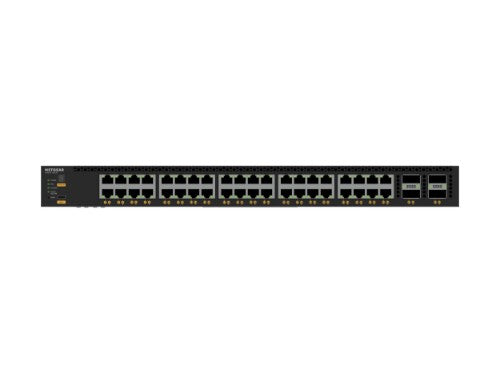

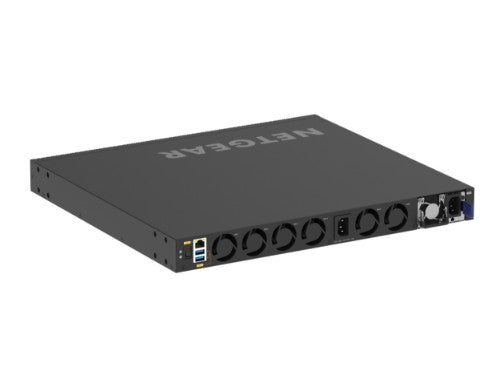

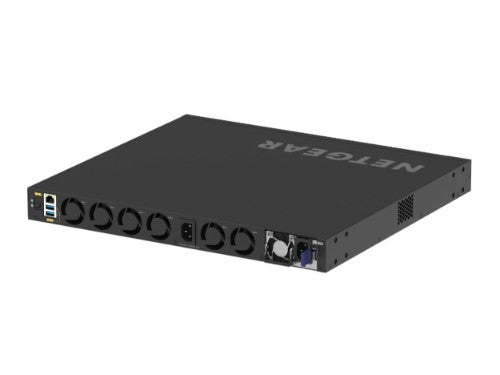

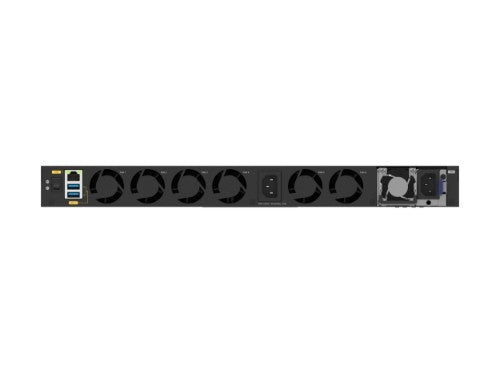

NETGEAR M4350-40X4C Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Part number:
XSM4344C-100NES
Sale price
$10,237.56
Regular price
$18,719.20
Save
$8,481.64
45%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
Description
POWER AND THROUGHPUTEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP proxy | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| 6to4 tunnel | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| IPv6 routes | 256 |
| IPv4 routes | 512 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4093 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Jumbo frames | 12000 |
| Throughput | 1190.4 Mpps |
| Latency (10 Gbps) | 2.71 µs |
| Packet buffer memory | 256 MB |
| MAC address table | 16000 entries |
| Switching capacity | 1600 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 256 MB |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| sFlow | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Power | |
| Power connector | AC-in jack |
| Power consumption (max) | 413 W |
| Power supply included | Yes |
| Power consumption (typical) | 200.4 W |
| Power source | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| QSFP28 ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 40 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Static port security | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 511 |
| Access Control List (ACL) egress | 1023 |
| IGMP proxy | Yes |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| Memory | |
| Packet buffer memory | 256 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 1676 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 15.7" (400 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 17.1 lbs (7.76 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Included power plug types | EU, UK, NA |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Power supply | 750 W |
| Packaging content | |
| Rack mount kit | Yes |
| Included power plug types | EU, UK, NA |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
