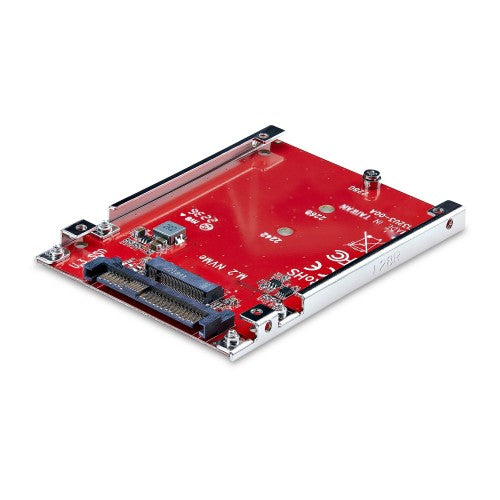

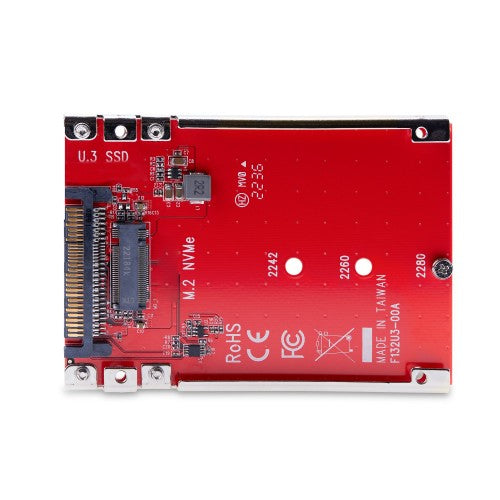

StarTech.com M.2 to U.3 Adapter for M.2 NVMe SSDs, PCIe M.2 Drive to 2.5inch U.3 (SFF-TA-1001) Host Adapter/Converter, TAA Compliant - 2.5" Drive Form Factor
Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup

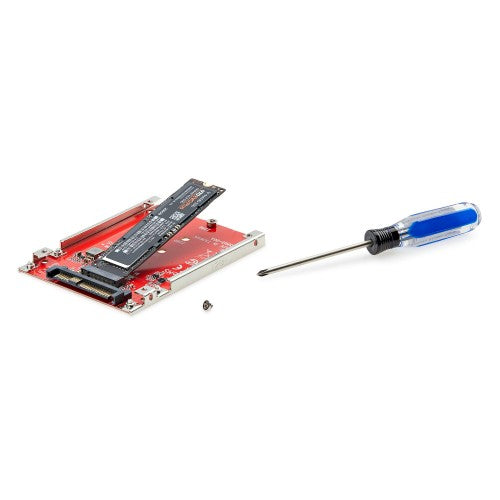

The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
StarTech.com
StarTech.com 1M25-U3-M2-ADAPTER interface cards/adapter Internal M.2
Part number:
1M25-U3-M2-ADAPTER
Sale price
$36.89
Regular price
$44.99
Save
$8.10
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bayConvert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | M.2 |
| Host interface | U.3 |
| Technical details | |
| Plug and Play | Yes |
| Purpose | PC |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Performance | |
| Plug and Play | Yes |
| Purpose | PC |
| Product colour | Red |
| S.M.A.R.T. support | Yes |
| Colour | |
| Product colour | Red |
| Design | |
| Mean time between failures (MTBF) | 12368734 h |
| Purpose | PC |
| Internal | Yes |
| Product colour | Red |
| Features | |
| Plug and Play | Yes |
| S.M.A.R.T. support | Yes |
| Power | |
| Output voltage | 3.3 V |
| Output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Height | 0.276" (7 mm) |
| Weight | 1.31 oz (37 g) |
| Package width | 5.59" (142 mm) |
| Package depth | 6.89" (175 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 3.53 oz (100 g) |
| Packaging data | |
| Package width | 5.59" (142 mm) |
| Package depth | 6.89" (175 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 3.53 oz (100 g) |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 19.3" (490 mm) |
| Master (outer) case length | 15" (381 mm) |
| Master (outer) case height | 12.3" (312 mm) |
| Packaging content | |
| Quick installation guide | Yes |
