1800 RPM, 12 V, ARGB, 62.72 CFM, 4.32 W, 122 x 61 x 156.2 mm
Features 15 high lumen addressable LEDs with 16.8 million colors, UX200 SE White gives you a vivid RGB lighting experience. Enjoy reliable cooling performance and magnificent visual effects with UX200 SE White.
HIGH VOLUME AIRFLOW DESIGN

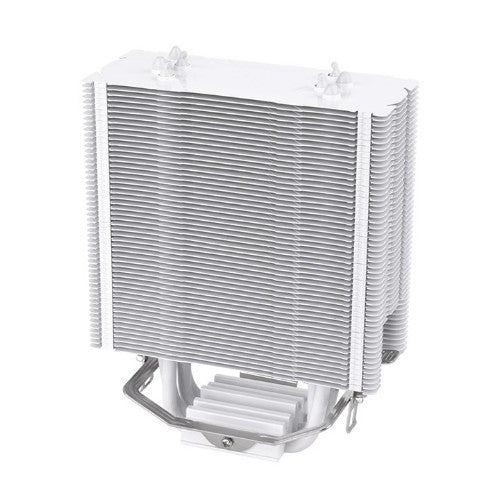

The fan blades are built to generate a large volume of air passing through the aluminum heatsink and U-shaped copper heat pipes at any angle for steady air flow.
RELIABLE HYDRAULIC BEARING
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
EASY TO INSTALL

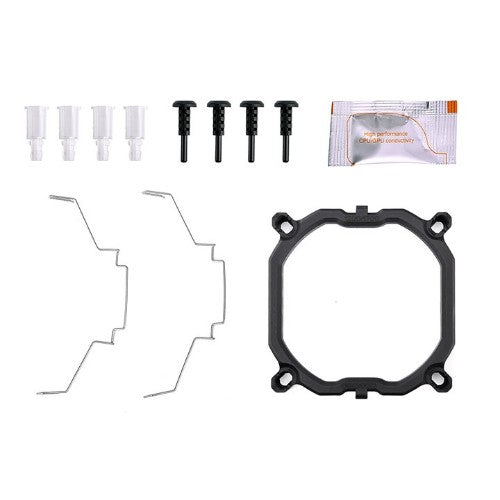

The mounting kit offers hassle-free installation. UX200 SE White includes an all-in-one back-plate which is compatible with all the latest Intel and AMD CPU sockets.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Thermaltake

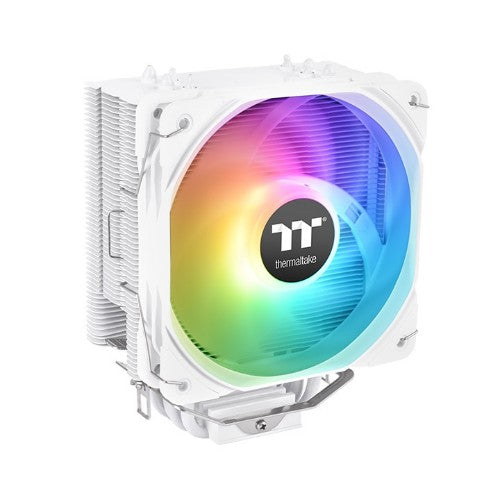

Thermaltake UX200 SE Processor Air cooler 4.72" (12 cm) White 1 pc(s)
Part number:
CL-P116-AL12SW-A
$31.33
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
UX200 SE ARGB Lighting CPU Cooler White comes with high air flow blades and U-shape copper heat pipes. Built-in ARGB LEDs delivers vibrant lighting effects that also supports motherboard sync. Compatible with universal Intel and AMD sockets.Features 15 high lumen addressable LEDs with 16.8 million colors, UX200 SE White gives you a vivid RGB lighting experience. Enjoy reliable cooling performance and magnificent visual effects with UX200 SE White.
HIGH VOLUME AIRFLOW DESIGN
The fan blades are built to generate a large volume of air passing through the aluminum heatsink and U-shaped copper heat pipes at any angle for steady air flow.
RELIABLE HYDRAULIC BEARING
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
EASY TO INSTALL
The mounting kit offers hassle-free installation. UX200 SE White includes an all-in-one back-plate which is compatible with all the latest Intel and AMD CPU sockets.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Hydrodynamic bearing |
| Thermal Design Power (TDP) | 170 W |
| Noise level (high speed) | 25 dB |
| Number of heat pipes | 4 |
| Type | Air cooler |
| Fan diameter | 4.72" (12 cm) |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow | 62.72 cfm |
| Maximum air pressure | 1.47 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Fan's mean time to failure (MTTF) | 30000 h |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Technical details | |
| Thermal Design Power (TDP) | 170 W |
| Noise level (high speed) | 25 dB |
| Number of heat pipes | 4 |
| Type | Air cooler |
| Fan diameter | 4.72" (12 cm) |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow | 62.72 cfm |
| Maximum air pressure | 1.47 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 6 V |
| Thermal Design Power (TDP) | 170 W |
| Rated current | 0.3 A |
| Power supply | 4.32 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 4.72 x 4.72 x 0.984" (120 x 120 x 25 mm) |
| Radiator width | 2.4" (6.1 cm) |
| Radiator depth | 4.8" (12.2 cm) |
| Radiator height | 6.14" (15.6 cm) |
