NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
  • NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Netgear

NETGEAR XSM4340V-TAANES network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

Part number: XSM4340V-TAANES
$6,975.36 $11,231.51
Save $4,256.15
38% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28, 440 x 400 x 43.2 mm, 7.24 kg

Key Features

  • 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
  • 750W internal power supply providing 290W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

Description

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

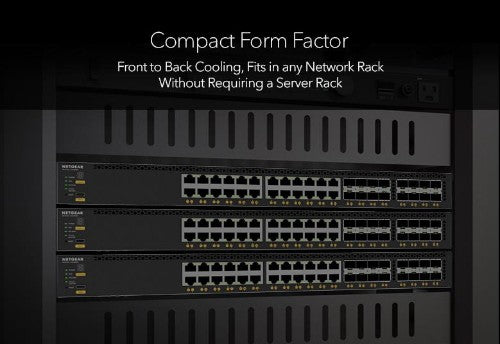

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features
ARP inspection Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L3
Ports & interfaces
SFP+ module slots quantity 8
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
SFP28 ports quantity 8
10G Ethernet (copper) ports quantity 24
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Number of VLANs 4093
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
Policy-based routing Yes
6to4 tunnel Yes
Virtual LAN features MAC address-based VLAN, Private VLAN, Voice VLAN
IPv6 routes 256
IPv4 routes 512
IGMP snooping Yes
GARP VLAN Registration Protocol (GVRP) Yes
IGMP proxy Yes
Data transmission
Jumbo frames 12000
Throughput 773.76 Mpps
Latency (10 Gbps) 2.7 µs
Packet buffer memory 64 MB
MAC address table 16000 entries
Switching capacity 1040 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Number of VLANs 4093
Multicast Listener Discovery (MLD) snooping Yes
Security
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN, MAC-based authentication
Static port security Yes
MAC address filtering Yes
IGMP snooping Yes
Access Control List (ACL) Yes
Root protection Yes
Queue scheduling algorithms Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Password protection Yes
DoS attack prevention Yes
Authentication type RADIUS, TACACS+
Access Control List (ACL) ingress 511
Access Control List (ACL) egress 1023
IGMP proxy Yes
DHCP features DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping Yes
Protocols
Management protocols SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP) Yes
Routing protocols OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
Form factor 1U
Product colour Black
Stackable Yes
LED indicators Yes
Rack mounting Yes
Airflow direction Front-to-back airflow
Performance
Processor frequency 1800 MHz
Memory type DDR4-SDRAM
Internal memory 4096 MB
Flash memory 512 MB
sFlow Yes
Built-in processor Yes
Processor model ARM Cortex-A57
Packet buffer memory 64 MB
Stackable Yes
Power
Power consumption (max) 464 W
Power supply included Yes
Power consumption (typical) 151.8 W
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 90 W
Total Power over Ethernet (PoE) budget 1770 W
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Other features
Power supply 750 W
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 0 - 90%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 118110.2" (0 - 3000 m)
Virtual LAN features
VLAN support Yes
Number of VLANs 4093
Virtual LAN features MAC address-based VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width 17.3" (440 mm)
Depth 15.7" (400 mm)
Height 1.7" (43.2 mm)
Weight 16 lbs (7.24 kg)
Packaging content
Rack mount kit Yes
Quick start guide Yes
Cables included AC, USB Type-C
Included power plug types EU, UK, NA
Packaging data
Included power plug types EU, UK, NA
Rack mount kit Yes
Quick start guide Yes
Cables included AC, USB Type-C
Sustainability
Sustainability compliance Yes
Technical details
Form factor 1U
Product colour Black
Stackable Yes
Processor frequency 1800 MHz
Rack mounting Yes
Built-in processor Yes
Sustainability compliance Yes
Compliance certificates BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), Trade Agreements Act (TAA)
Memory
Packet buffer memory 64 MB
Memory type DDR4-SDRAM
Internal memory 4096 MB
Flash memory 512 MB
Certificates
Compliance certificates BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), Trade Agreements Act (TAA)
Indication
LED indicators Yes
Mobile network
GARP VLAN Registration Protocol (GVRP) Yes
