5MP AI IR Bullet Camera with Varifocal lens
Hanwha

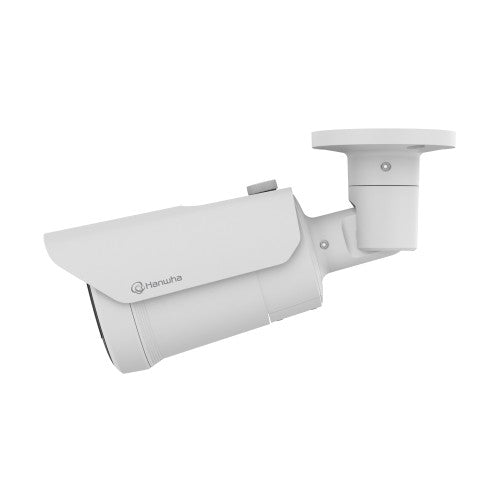

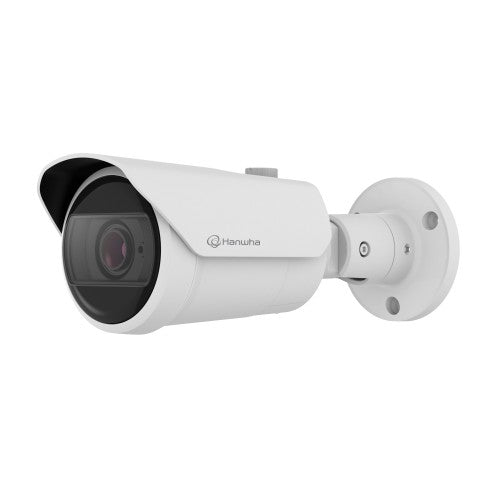

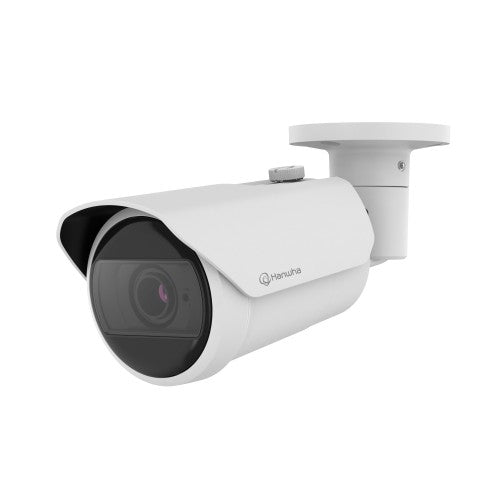

Hanwha QNO-C8083R security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Part number:
QNO-C8083R
Sale price
$558.12
Regular price
$790.00
Save
$231.88
29%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5MP resolution
- 3.2 ~ 10.2mm (H: 95°~29° / V: 69°~21°) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Appear/Disappear, Tampering, Motion Detection based on AI engine, AI Object Detection - Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- People Counting, Heatmap, Queue Management, & Vehicle Counting
- micro SD (256GB) memory slot, PoE / 12V DC
- IR viewable length 30m (98ft)
- IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
- USB for easy installation, open platform
- Optional SBO-140BW backbox accessory available
- Audio support (mic/line input)
- Operating temperature -30°C~+55°C (-22°F ~ +131°F), white color
Description
Now the Wisenet Q series meets AI with advanced Object Detection and accurate Motion Detection of AI Objects, eliminating false positives from foliage, lighting changes, etc.Specifications
| Performance | |
|---|---|
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum |
| Camera | |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/5~1/12,000 s |
| Lens viewing angle, horizontal | 95 - 29° |
| Lens viewing angle, vertical | 69 - 21° |
| Lens viewing angle, diagonal | 126 - 36° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Lens system | |
| Maximum aperture number | 3.1 |
| Recognize distance (wide) | 334.6" (8.5 m) |
| Recognize distance (tele) | 1472.4" (37.4 m) |
| Observe distance (wide) | 677.2" (17.2 m) |
| Observe distance (tele) | 2968.5" (75.4 m) |
| Identify distance (wide) | 169.3" (4.3 m) |
| Identify distance (tele) | 736.2" (18.7 m) |
| Detect distance (wide) | 1681.1" (42.7 m) |
| Detect distance (tele) | 7358.3" (186.9 m) |
| Closest focusing distance | 47.2" (1.2 m) |
| Focal length range | 3.2 - 10.2 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | WiseNR Ⅱ |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2592 x 1944 pixels |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2592 x 1944 |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Audio | |
| Voice codecs | G.711ulaw, G.726 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Storage | |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Flash memory | 1000 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
| USB port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Flash memory | 1000 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Bullet |
| Placement supported | Indoor & outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Defocus, Heat map, Human detection, People counting, Vehicle detection |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2 |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Material | |
| Housing material | Aluminum |
| Power | |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Length | 9.68" (245.8 mm) |
| Diameter | 3.68" (9.34 cm) |
| Weight | 32.8 oz (930 g) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
