Station Wi-Fi 6 2x2 5GHz Outdoor Long Range CPE
EnGenius

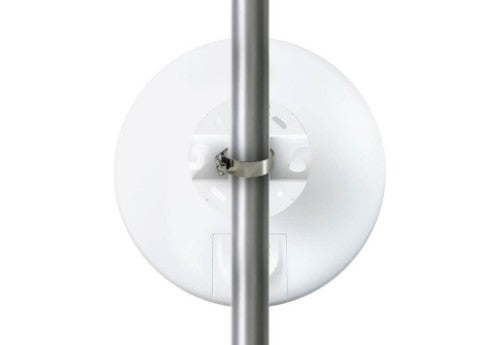

EnGenius EnStation6 network antenna Directional antenna 19 dBi
Part number:
ENSTATION6
$201.00
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Wi-Fi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments
- Beamforming optimizes antenna signal, reception & reliability for clients
- 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz
- High 26 dBm transmit power extends Wi-Fi to yard or building-to-building
- High gain 19 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point
- IP55-rated weatherproof & dustproof housing

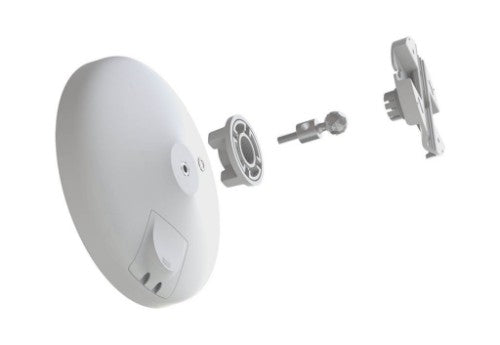

- 3-Axis pivoting arm locks for precise alignment
- Flexible Operation Modes: Access Point, Station, WDS Access Point, WDS Station, Repeater
- GE PoE port supports flexible power options
Description
The EnGenius Station Wi-Fi 6 2x2 5GHz Outdoor Long Range CPE offers reliable and efficient outdoor Wi-Fi connectivity with Wi-Fi 6 technology and beamforming optimization. It features high 26 dBm transmit power and high gain 19 dBi integrated directional antenna for extended Wi-Fi range up to 5 miles point-to-point. It's also weatherproof and offers flexible operation modes with easy installation over 100 meters.Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 19 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Frequency band | 5 GHz |
| Gain | 19 dBi |
| Cabling technology | 10/100/1000Base-T(X) |
| Features | |
| International Protection (IP) code | IP55 |
| Antenna type | Directional antenna |
| Product colour | White |
| Antenna gain level (max) | 19 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Frequency band | 5 GHz |
| Gain | 19 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 1.5" (38 mm) |
| Diameter | 7.48" (19 cm) |
| Package width | 12.6" (320 mm) |
| Package depth | 3.39" (86 mm) |
| Package height | 9.76" (248 mm) |
| Package weight | 2.29 lbs (1.04 kg) |
| Packaging data | |
| Package width | 12.6" (320 mm) |
| Package depth | 3.39" (86 mm) |
| Package height | 9.76" (248 mm) |
| Package weight | 2.29 lbs (1.04 kg) |
| Technical details | |
| Antenna gain level (max) | 19 dBi |
| Frequency band | 5 GHz |
| Antenna type | Directional antenna |
| Gain | 19 dBi |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Colour | |
| Product colour | White |
| Logistics data | |
| Master (outer) case width | 18.1" (460 mm) |
| Master (outer) case length | 20.1" (510 mm) |
| Master (outer) case height | 14.2" (360 mm) |
| Master (outer) case gross weight | 26.2 lbs (11.9 kg) |
| Products per master (outer) case | 10 pc(s) |
