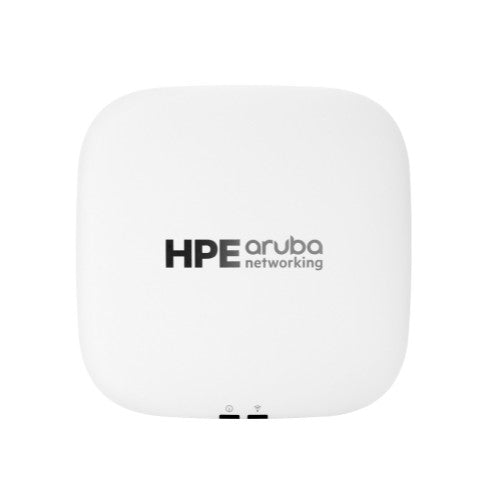

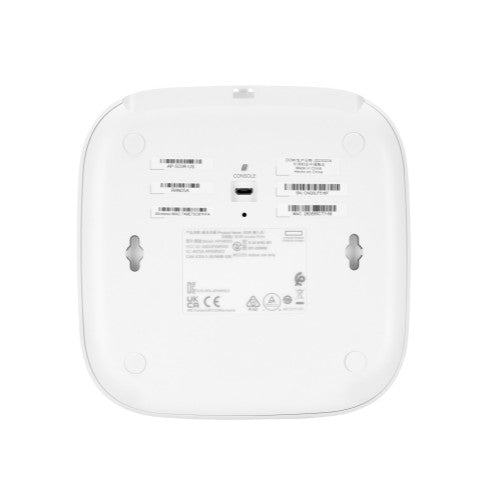

HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point
  • HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point
  • HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point
HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point
HPE

HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point

Part number: R8N02A
$454.71 $595.00
Save $140.29
24% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point, 2.4 GHz, 5 GHz, 1490 Mbit/s, WMM, WPA, WPA2, WPA3, 10,100,1000 Mbit/s

Reasons To Buy

Wi-Fi 6 Performance for Small Branches and Remote Work

HPE Aruba Networking 500R Series Remote Access Points deliver a maximum combined data rate of 1.49 Gbps with two spatial streams to meet the needs of low and medium density environments.
The access point provides Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency.
Includes three 1 Gbps Ethernet ports (1 uplink, 2 downlink) for wired connectivity.
Supports optional USB LTE modem for high-speed LTE Cat 12 connectivity.
Flexibility is powered through DC or a standard USB-C source and ships with 12V adapter and localized plug.

Simple and Secure Access

The HPE Aruba Networking 500R Series Remote Access Points offer enhanced security with Dynamic Segmentation to remove the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
Trusted Platform Module (TPM) secures credentials, keys, and boot code.

Cloud Managed and Ready for IoT

HPE Aruba Networking 500R Series Remote Access Points are deployed and managed using cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and even temporary locations with built-in SD-WAN and cloud security.
Remote work microbranch capabilities include SD-WAN route/tunnel orchestration, policy-based routing, multiple active tunnels, WAN health visibility, and cloud security orchestration.
Connect IoT devices with an optional USB dongle for [1] Bluetooth 5 and 802.15.4/Zigbee support.
Target Wake Time (TWT) establishes a schedule for client communications to save power and reduce airtime contention.

Description

HPE Aruba Networking AP-503R (IL) Dual Radio 2x2 802.11ax Wi-Fi 6 Remote Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1490 Mbit/s. Security algorithms: WMM, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: White. Power consumption (max): 15.4 W

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1490 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Auto MDI/MDI-X Yes
Spread spectrum method DSSS, OFDM, OFDMA
Networking standards IEEE 802.11ax
Ethernet LAN data rates 10,100,1000 Mbit/s
Certification None
Maximum data transfer rate 1490 Mbit/s
MIMO Yes
Network
Spread spectrum method DSSS, OFDM, OFDMA
Networking standards IEEE 802.11ax
Security
Cable lock slot Yes
Security algorithms WMM, WPA, WPA2, WPA3
Features
6 GHz No
2.4 GHz Yes
5 GHz Yes
Auto MDI/MDI-X Yes
Spread spectrum method DSSS, OFDM, OFDMA
Networking standards IEEE 802.11ax
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1490 Mbit/s
MIMO Yes
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate (5 GHz) 1200 Mbit/s
Trusted Platform Module (TPM) Yes
Ports & interfaces
USB connector type Micro-USB B, USB Type-A
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (max) 15.4 W
Power supply 18 W
Power over Ethernet (PoE) No
DC voltage range 12 V
Design
Placement Desk, Wall
Product colour White
LED indicators Status
Certification None
Cable lock slot Yes
Cable lock slot type Kensington
Antenna
Antenna type Internal
Antennas quantity 2
Antenna gain level (max) 5.1 dBi
Antenna direction type Omni-directional
Antenna features Integrated antenna
Technical details
Compliance certificates Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification None
Compliance certificates Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Indication
LED indicators Status
Weight & dimensions
Width 5.91" (150 mm)
Depth 5.91" (150 mm)
Weight 11.3 oz (320 g)
Height 1.54" (39 mm)
Package width 9.45" (240 mm)
Package depth 6.69" (170 mm)
Package height 1.97" (50 mm)
Package weight 21.2 oz (600 g)
Packaging data
Package width 9.45" (240 mm)
Package depth 6.69" (170 mm)
Package height 1.97" (50 mm)
Package weight 21.2 oz (600 g)
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 55 °C
Storage relative humidity (H-H) 10 - 100%
