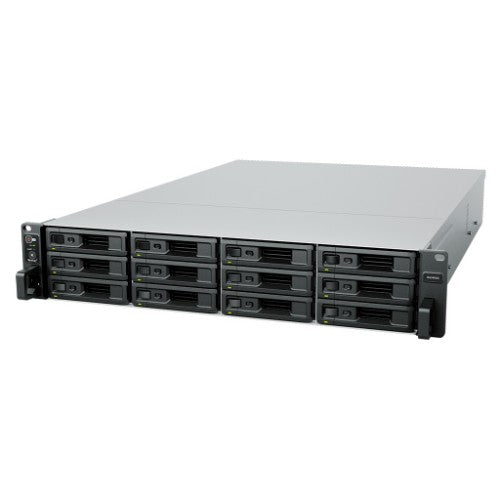

12-Bay 3.5", 2x GbE/1x 10GbE, Intel Xeon D-1541, 8GB RAM, RPSU, SAS, 2U
Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments
The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.
Consolidate your data infrastructure
Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.
Add storage capacity on demand
Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.
Boost network and I/O performance
Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.
Performance backed by Synology drives
Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.
Synology
Synology SA3400D NAS/storage server Rack (2U) Ethernet LAN D-1541
Part number:
SA3400D
$10,800.07
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Built-in High AvailabilityKeep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments
The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.
Consolidate your data infrastructure
Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.
Add storage capacity on demand
Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.
Boost network and I/O performance
Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.
Performance backed by Synology drives
Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Processor cache | 12 MB |
| Processor boost frequency | 2.7 GHz |
| CPU configuration (max) | 1 |
| Processor frequency | 2.1 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1541 |
| Processor cores | 8 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
| Network | |
| Link aggregation | Yes |
| Ethernet LAN | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 3 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 2 fan(s) |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Backup function | Yes |
| Number of users | 16000 user(s) |
| Chassis type | Rack (2U) |
| Number of fans | 2 fan(s) |
| Performance | |
| Type | NAS |
| Backup function | Yes |
| Reset button | Yes |
| Number of users | 16000 user(s) |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 2 fan(s) |
| Security | |
| Access Control List (ACL) | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 28.5" (724 mm) |
| Height | 3.46" (88 mm) |
| Weight | 43.4 lbs (19.7 kg) |
| Processor special features | |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
