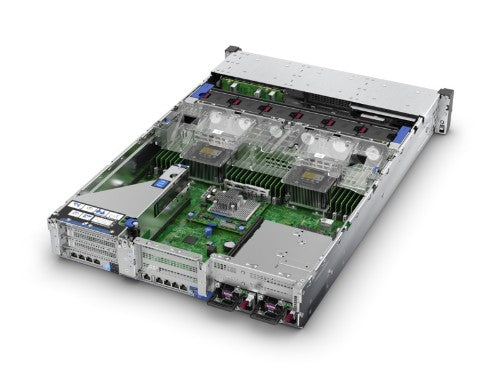

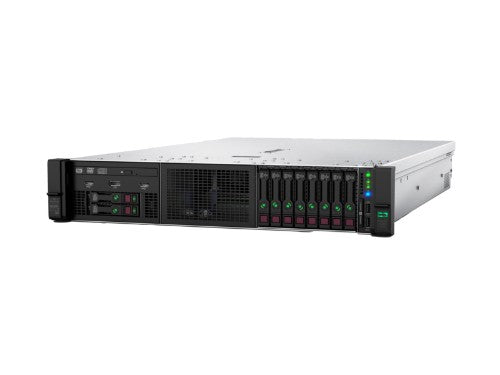

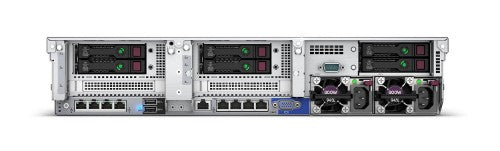

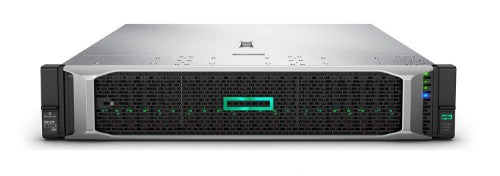

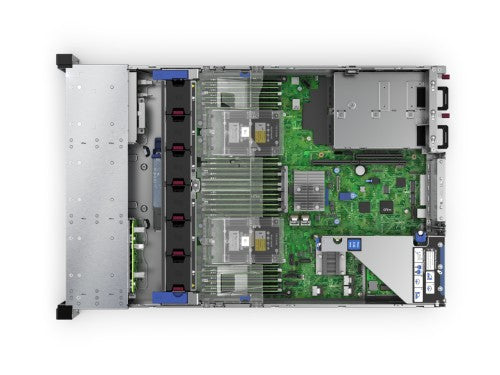

HPE ProLiant DL380 Gen10, 2.2 GHz, 5220, 32 GB, DDR4-SDRAM, 800 W, Rack (2U)
HPE
HPE ProLiant DL380 Gen10 server Rack (2U) Intel® Xeon® Gold 5220 2.2 GHz 32 GB DDR4-SDRAM 800 W
Part number:
P20248-B21
$8,511.71
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE ProLiant DL380 Gen10. Processor family: Intel® Xeon® Gold, Processor frequency: 2.2 GHz, Processor model: 5220. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN. Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)Specifications
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 125 W |
| Tcase | 87 °C |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Processor threads | 36 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache type | L3 |
| Processor cache | 24.75 MB |
| Processor frequency | 2.2 GHz |
| Number of processors installed | 1 |
| Processor model | 5220 |
| Processor boost frequency | 3.9 GHz |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 18 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C621 |
| Maximum number of SMP processors | 2 |
| Processor family | Intel® Xeon® Gold |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 1.54 TB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Number of SSDs supported | 8 |
| Supported HDD sizes | 2.5" |
| SSD interface | SATA, Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 60 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 72 TB |
| Hot-Plug support | Yes |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Supported SSD sizes | 2.5" |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| Performance | |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/Kbase SUSE Linux Enterprise Server (SLES) |
| Remote administration | iLO 5 ASIC |
| Operating system installed | No |
| Harmonized System (HS) code | 84714100 |
| Software | |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/Kbase SUSE Linux Enterprise Server (SLES) |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193388 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported HDD sizes | 2.5" |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Sustainability certificates | ENERGY STAR |
| Management features | |
| Remote administration | iLO 5 ASIC |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 17.5" (445.5 mm) |
| Weight | 32.6 lbs (14.8 kg) |
| Height | 3.44" (87.4 mm) |
| Depth | 28.8" (730.3 mm) |
