5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through
Trendnet

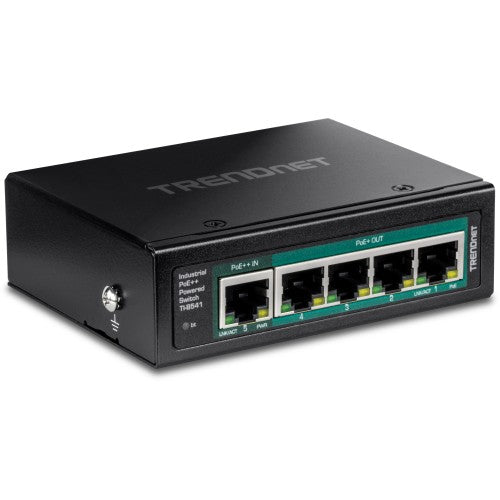

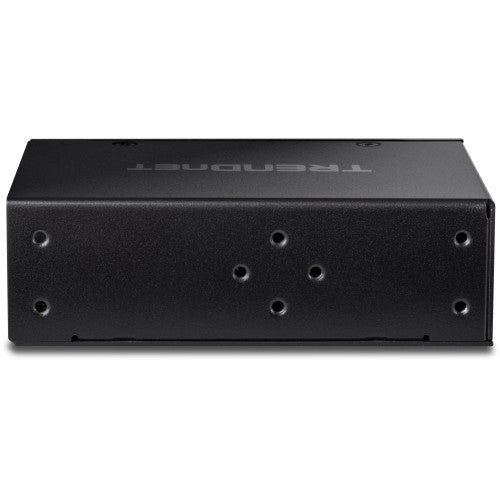

Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-B541
Sale price
$168.82
Regular price
$210.34
Save
$41.52
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 1 x Gigabit PoE++ input port
- 4 x Gigabit PoE+ output ports
- 65W PoE power budget with PoE++ Type 4 (90W) input power
- 10Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE FCC LVD |
| Performance | |
| Mean time between failures (MTBF) | 537083 h |
| Power | |
| Power consumption (max) | 3.9 W |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 4.02" (102 mm) |
| Depth | 3.15" (80 mm) |
| Height | 1.22" (31 mm) |
| Weight | 5.64 oz (160 g) |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 537083 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE FCC LVD |
