10GBASE-T to SFP+ Fiber Media Converter
Trendnet

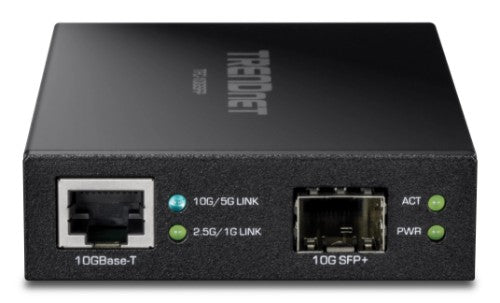

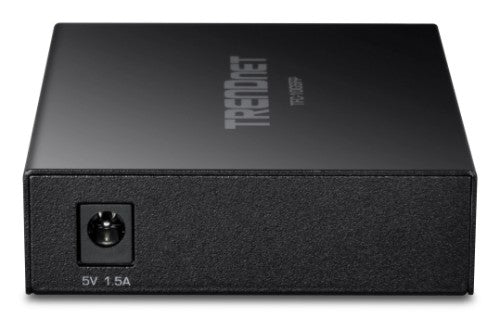

Trendnet TFC-10GSFP network media converter 10000 Mbit/s
Part number:
TFC-10GSFP
Sale price
$141.37
Regular price
$144.99
Save
$3.62
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 1 x 10G RJ-45 port
- 1 x 10G SFP+ Slot
- LFPT support (Link Fault Pass Through)
- SFP slot accommodates multimode or single-mode modules
- RJ-45 port supports full-duplex mode
- Functions as a standalone converter
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | 10 Gigabit Ethernet |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | SFP+ |
| Features | |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Power | |
| Power consumption (max) | 4 W |
| Input voltage | 110 - 240 V |
| Output voltage | 5 V |
| Output current | 1.5 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 4.13" (105 mm) |
| Depth | 2.95" (75 mm) |
| Weight | 6.63 oz (188 g) |
| Height | 0.866" (22 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
| Internal | No |
| Design | |
| Certification | CE FCC |
| Internal | No |
| Certificates | |
| Certification | CE FCC |
