2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through New
Other highlights include video resolution support for up to 4K (3840 x 2160) @ 60 Hz, ensuring that every video detail is displayed in crisp UHD quality. The US3311 is a 4-port USB 3.2 Gen 1 Type-A hub with up to 5 Gbps data transfer rates while supporting high-speed downstream devices. Furthermore, the Power Delivery 3.0 technology enables charging of the host device with up to 100 W, allowing your laptop to obtain the maximum power via your USB-C power adapter. The US3311 helps save valuable desk space and expands the functionality and connectivity of your Mac laptops, creating an ultra-powerful USB-C workstation.
ATEN

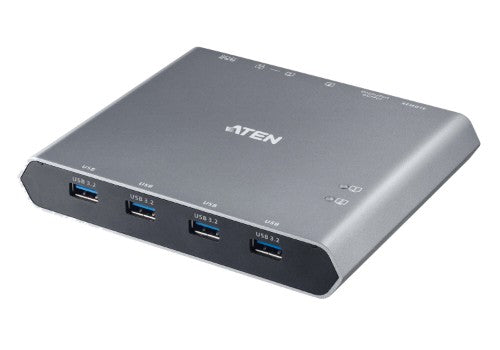

ATEN US3311 KVM switch Aluminum
Part number:
US3311
$212.11
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
- Superior video quality – up to True 4K (3840 X 2160 @ 60 Hz)
- ATEN Video DynaSync™ Technology - eliminates boot-up display problems and optimizes resolutions when switching among video sources
- USB 3.2 Gen 1 compliant
- Up to 5 Gbps data transfer rates
- Supports DP 1.4 Alt Mode
- Supports PD 3.0 up to 100 W USB PD charging – allows your laptop to obtain the maximum power via your USB-C power adapter
- Host device selection via the included port switch button
- Plug-and-Play – no drivers needed
Description
Built to deliver easy control and seamless switching between dual USB-C hosts, the US3311 is a 2-in-1 solution combining a KVM switch and a multiport dock with 4 x USB Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input. Quick switching from one laptop to the other is made easy through one press of the dedicated port switch button, enabling use of the same USB peripherals and a single DisplayPort monitor for two host devices. Work efficiency is boosted without the need to switch workstations or unplug peripherals.Other highlights include video resolution support for up to 4K (3840 x 2160) @ 60 Hz, ensuring that every video detail is displayed in crisp UHD quality. The US3311 is a 4-port USB 3.2 Gen 1 Type-A hub with up to 5 Gbps data transfer rates while supporting high-speed downstream devices. Furthermore, the Power Delivery 3.0 technology enables charging of the host device with up to 100 W, allowing your laptop to obtain the maximum power via your USB-C power adapter. The US3311 helps save valuable desk space and expands the functionality and connectivity of your Mac laptops, creating an ultra-powerful USB-C workstation.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 3 |
| Console ports | USB C |
| USB connector type | USB Type-A, USB Type-C |
| DisplayPorts quantity | 1 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| Console DisplayPorts ports quantity | 1 |
| Performance | |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 1 |
| Technical details | |
| Product colour | Aluminum |
| Rack mounting | No |
| Plug and Play | Yes |
| LED indicators | Yes |
| USB hub | Yes |
| Design | |
| Wired remote switch | Yes |
| Product colour | Aluminum |
| Rack mounting | No |
| LED indicators | Yes |
| Housing material | Aluminum |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 3.3 A |
| Power source | DC |
| USB Power Delivery up to | 100 W |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Yes |
| Input voltage | 12 V |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.3 Panther, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | iPadOS, Android |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 4.69" (119 mm) |
| Depth | 5.63" (143 mm) |
| Height | 0.937" (23.8 mm) |
| Weight | 12.3 oz (350 g) |
| Packaging content | |
| Cables included | USB Type-C |
| Quick installation guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
