XGA, 4000 ANSI, 15000:1, 1.07 B, 240W UHP, 16W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.87 kg
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
Viewsonic

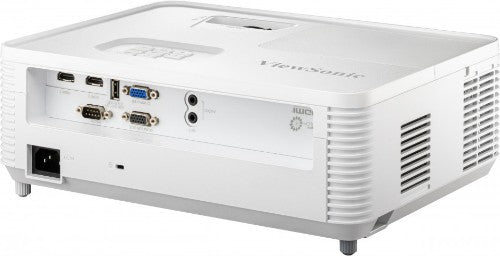

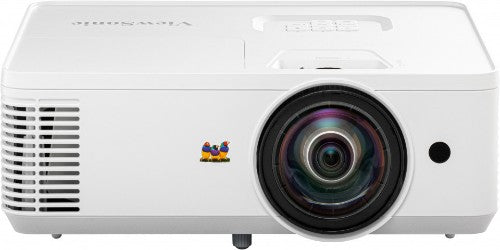

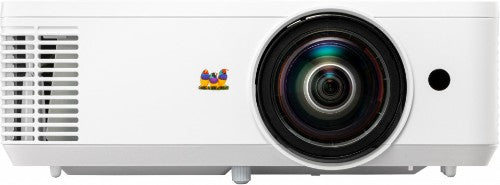

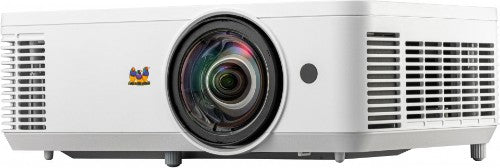

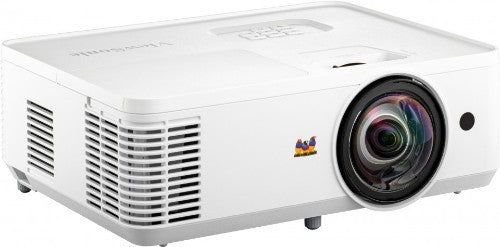

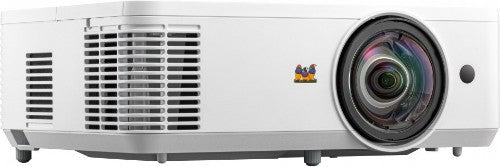

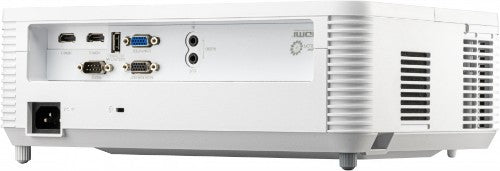

Viewsonic PS502X data projector Short throw projector 4000 ANSI lumens XGA (1024x768) White
Part number:
PS502X
Sale price
$584.51
Regular price
$849.00
Save
$264.49
31%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4,000 ANSI Lumens offering clear images in any environment
- 0.616 Short throw ratio for minimal space consumption
- Up to 300" ultra large screen with lower cost-per-inch
- Easy and flexible connection: dual HDMI ports, USB Type-A port
- Convenient software updates for projectors via USB connection
Description
The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colors |
| Projector native resolution | XGA (1024x768) |
| Screen size compatibility | 60 - 300" |
| Projection distance | 29.5 - 148" (0.75 - 3.76 m) |
| Contrast ratio (typical) | 15000:1 |
| Vertical scan range | 23 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Keystone correction, vertical | -19 - 19° |
| Projector brightness | 4000 ANSI lumens |
| Smart projector | No |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Lamp type | UHP |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Service life of light source (economic mode) | 12000 h |
| Lens system | |
| Fixed focal length | 0.281" (7.15 mm) |
| Zoom capability | Yes |
| Focus | Manual |
| Throw ratio | 0.616 |
| Offset | 115% |
| F-number (relative aperture) | 2.7 |
| Digital zoom | 2x |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Ports & interfaces | |
| HDMI connector type | Full-size |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 0 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| AC (power) in | Yes |
| Service port type | USB Type-A |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| Noise level | 34 dB |
| Noise level (economic mode) | 25 dB |
| Air filter | Yes |
| Number of OSD languages | 22 |
| HDCP version | 1.4 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Education |
| Product type | Short throw projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Package width | 15.7" (400 mm) |
| Package depth | 13.3" (337 mm) |
| Package height | 6.61" (168 mm) |
| Weight | 6.33 lbs (2.87 kg) |
| Width | 12.2" (309 mm) |
| Depth | 9.21" (234 mm) |
| Height | 4.53" (115 mm) |
| Package weight | 8.99 lbs (4.08 kg) |
| Packaging content | |
| Remote control included | Yes |
| Warranty card | Yes |
| Remote control type | IR |
| Quick start guide | Yes |
| Cables included | AC, VGA |
| Technical details | |
| Image lag time | 33.2 ms |
| Other features | |
| F-number (relative aperture) | 2.7 |
