1440 VA, 1000 W, 120 V, 693 J, NEMA 5-15P, 8 NEMA 5-15R, Lead-Acid battery, 6 ms, 45 dBA

Description

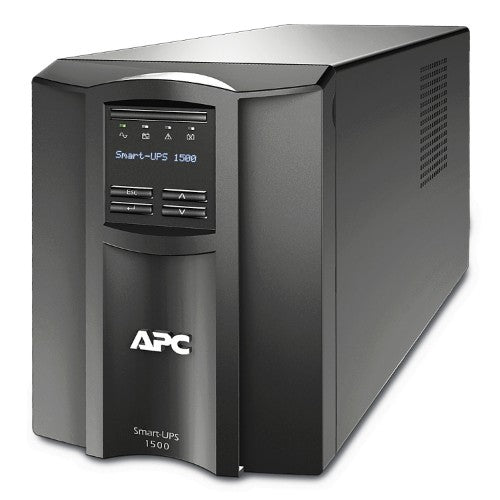

APC Smart-UPS 1500VA 120V Shipboard - High availability, ruggedized power protection for shipboard and other transportation applications.

Specifications

Power
Output frequency	50/60 Hz
Output power	1000 W
Input operation voltage (min)	82 V
Input operation voltage (max)	144 V
Output operation voltage (max)	120 V
Surge energy rating	693 J
Output power capacity	1.44 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Waveform	Sine
Response time	6 ms
LED indicators	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Response time	6 ms
Output power	1000 W
Input operation voltage (min)	82 V
Input operation voltage (max)	144 V
Output operation voltage (max)	120 V
Surge energy rating	693 J
Noise level	45 dB
Audible alarm(s)	Yes
Output power capacity	1.44 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
USB port type	USB Type-B
Battery
Battery life (max)	5 year(s)
Battery capacity	408 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	17 min
Typical backup time at full load	5 min
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	CSA C22.2 No 107.1, REACH, RoHS, WEEE
Control type	Buttons
Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Doesn't contain	Mercury
Compliance certificates	REACH, RoHS, WEEE
Weight & dimensions
Weight	54.2 lbs (24.6 kg)
Width	6.73" (171 mm)
Height	8.62" (219 mm)
Depth	17.3" (439 mm)
Battery width	23.2" (59 cm)
Battery depth	13" (33 cm)
Battery height	13" (33 cm)
Battery weight	54.2 lbs (24.6 kg)
Packaging data
Manual	Yes
Certificates
Certification	CSA C22.2 No 107.1, REACH, RoHS, WEEE
Packaging content
Manual	Yes
