4.9 kVA, 4.9 kW, 120-240V, 50/60Hz, 1260J, 1047 BTU/h, 55 dB

Description

Description

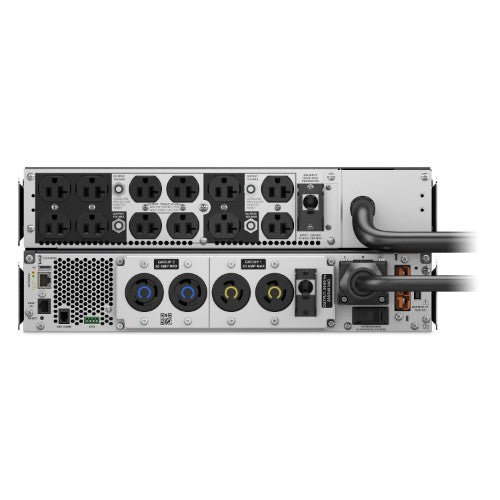

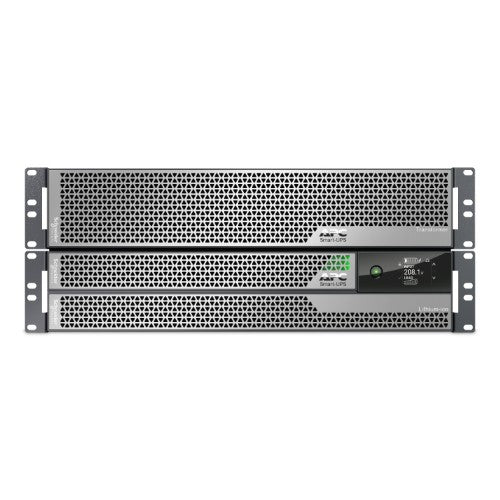

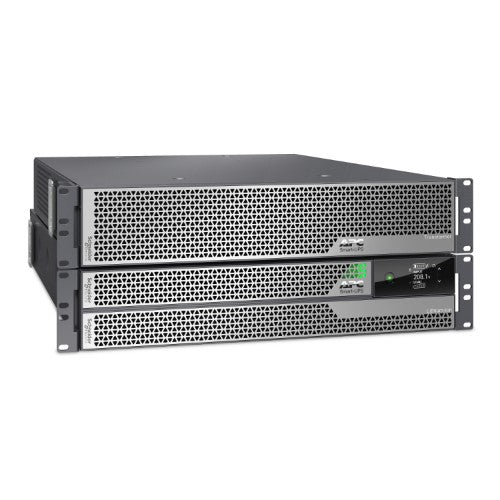

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker Standard warranty, 5 years repair or replace.

Specifications

Power
Output frequency	50/60 Hz
Output power	4900 W
Input operation voltage (min)	208 V
Input operation voltage (max)	240 V
Output operation voltage (min)	120 V
Output operation voltage (max)	240 V
Surge energy rating	1260 J
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Output power capacity	4.9 kVA
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	120.1" (3.05 m)
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA L5-20R, NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-A
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Sine
Output power	4900 W
Input operation voltage (min)	208 V
Input operation voltage (max)	240 V
Output operation voltage (min)	120 V
Output operation voltage (max)	240 V
Surge energy rating	1260 J
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	4.9 kVA
Input frequency	40 - 70 Hz
Heat dissipation	1047 BTU/h
Battery
Battery life (max)	10 year(s)
Battery voltage	180 V
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	1.5 h
Design
International Protection (IP) code	IP20
Rack capacity	4U
Form factor	Rackmount
Product colour	Silver
Cable length	120.1" (3.05 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Weight & dimensions
Package width	37.8" (960 mm)
Package depth	24.5" (622 mm)
Package height	20" (508 mm)
Weight	159.4 lbs (72.3 kg)
Width	17" (432 mm)
Package weight	174.4 lbs (79.1 kg)
Height	6.93" (176 mm)
Depth	28.3" (719 mm)
Packaging data
Rack mount kit	Yes
Cables included	USB cable
Package width	37.8" (960 mm)
Package depth	24.5" (622 mm)
Package height	20" (508 mm)
Package weight	174.4 lbs (79.1 kg)
Packaging content
Rack mount kit	Yes
Cables included	USB cable
