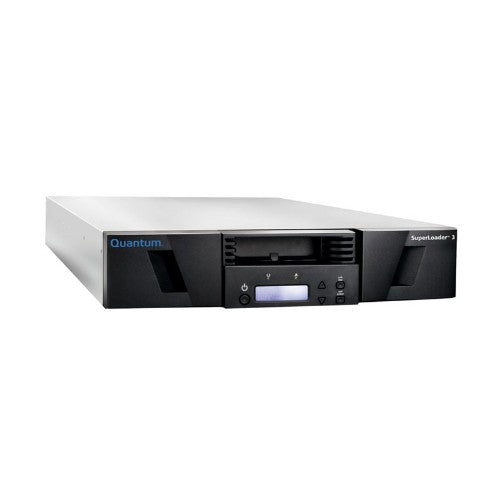

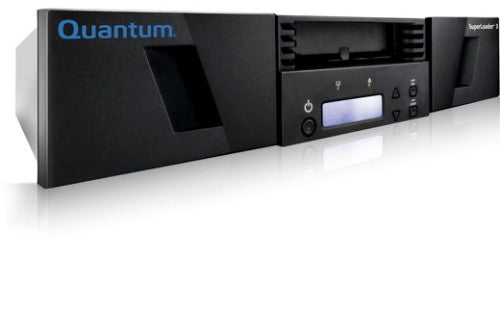

LTO-8HH Drive, Model C, 8 slots, 6Gb/s SAS, 2U Rackmount

Description

The SuperLoader 3 brings you a full suite of advanced features at an affordable price with easy integration, an intuitive user interface, and compatibility with a broad range of backup software packages. And because you can easily expand from 8 to 16 cartridge slots, your investment is protected as your needs grow.

What is SuperLoader 3?
Designed for simple and reliable backups, the SuperLoader® 3 offers an exclusive package of advanced features including StorageCare® Guardian, remote management, and barcode reader—all at no additional cost. It also gives you the widest range of drive options in the industry to support data requirements up to 3,840 TB—with the flexibility to expand as your storage needs grow.

StorageCare Guardian
Complete Solution with StorageCare Guardian – A remote monitoring and diagnostics tool that proactively monitors your SuperLoader 3 over the Internet and uses intelligent diagnostics to remotely service the unit if necessary

Backup with Deduplication
Backup with Deduplication – Includes DATASTOR Shield backup software; reduces data by 20X. Up to 400 TB* of capacity with standard compression; up to 3,840 TB of capacity with DATASTOR Shield.

*2.5:1 compression, 20:1 deduplication

Specifications

Performance
Media type	Tape Cartridge
Form factor	2U
Mean time between failures (MTBF)	1500000 h
Interface	SAS
Bundled software	DATASTOR Shield Deduplication
Compatible operating systems	Windows
Product colour	Black
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Storage media types supported	LTO-8HH
Web-based management	Yes
Number of slots (min)	8
Number of slots (max)	16
Storage
Compressed capacity	480 TB
Native capacity	192 TB
Maximum supported storage capacity	400 TB
Data transmission
Backup rate compressed performance	2700 GB/h
Backup rate native performance	1080 GB/h
Data transfer rate	6 Gbit/s
Technical details
Width	16.7" (424.2 mm)
Height	3.41" (86.6 mm)
Depth	27.5" (698.5 mm)
Data compression	2.5:1
Harmonized System (HS) code	84719000
Ports & interfaces
Interface	SAS
Weight & dimensions
Dimensions (WxDxH)	16.7 x 27.5 x 3.41" (424.2 x 698.5 x 86.6 mm)
Form factor	2U
Chassis type	Rackmount
Weight	31.1 lbs (14.1 kg)
Width	16.7" (424.2 mm)
Height	3.41" (86.6 mm)
Depth	27.5" (698.5 mm)
Colour
Product colour	Black
Software
Bundled software	DATASTOR Shield Deduplication
Design
Form factor	2U
Product colour	Black
Power
Power requirements	90 - 256VAC
Endurance
Mean time between failures (MTBF)	1500000 h
System requirements
Compatible operating systems	Windows
Features
Product colour	Black
Product type	Storage auto loader & library
Logistics data
Harmonized System (HS) code	84719000
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	-6023.6 - 120000" (-153 - 3048 m)
Non-operating altitude	-6023.6 - 480000" (-153 - 12192 m)
Packaging content
Bundled software	DATASTOR Shield Deduplication
Other features
Dimensions (WxDxH)	16.7 x 27.5 x 3.41" (424.2 x 698.5 x 86.6 mm)
Data compression	2.5:1
Chassis type	Rackmount
