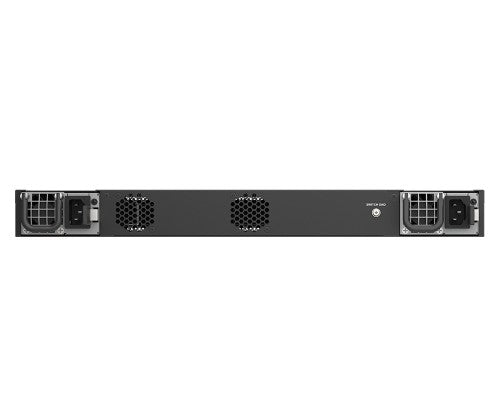

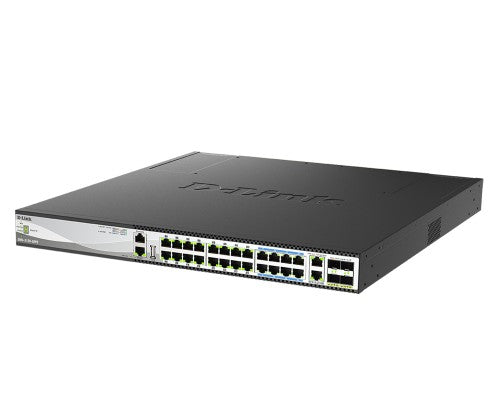

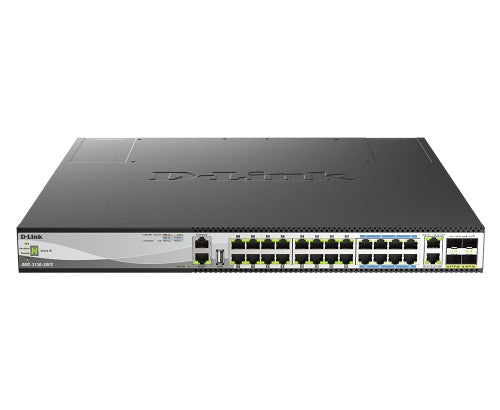

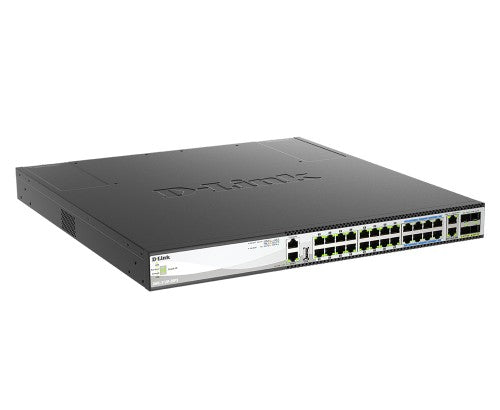

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch

Description

The DMS-3130 Series is a range of Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. The DMS-3130 Series has PoE and non-PoE models equipped with multi-Gigabit Ethernet and SFP network connection options. The DMS-3130 Series includes models equipped with multiGigabit Ethernet and SFP28 network connection options. The DMS-3130-30PS provides 16 PoE ports using 802.3af and 802.3at, and 8 ports using 802.3bt 60W PoE standards with default power budgets of 740 watts and the potential to be expanded to 960 watts with dual power supplies. Each model boasts 2 10GBASE-T ports and 4 10/25G SFP28 ports to provide versatility and speed. This series is also equipped with a USB 2.0 port, allowing users to boot images and upload configuration files directly from, as well as conveniently save syslog files to a USB 2.0 storage device.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
USB 2.0 ports quantity	1
Console port	RJ-45
SFP28 ports quantity	4
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Packet buffer memory	4 MB
MAC address table	32768 entries
Switching capacity	400 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	298 Mpps
Number of VLANs	4000
Security
Loop protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	IEEE 802.1x, RADIUS, TACACS+
Access Control List (ACL) ingress	3072
Access Control List (ACL) egress	1024
DHCP features	DHCP guarding, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Number of fans	2 fan(s)
Certification	FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Mean time between failures (MTBF)	277222.63 h
Packet buffer memory	4 MB
Stackable	Yes
Power
Power consumption (max)	1211.5 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	740 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	4137.73 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	18.5" (470 mm)
Height	1.73" (44 mm)
Weight	14.4 lbs (6.54 kg)
Technical details
Physical stacking (units)	9
Virtual stacking (units)	32
Form factor	1U
Product colour	Black
Stackable	Yes
Mean time between failures (MTBF)	277222.63 h
Rack mounting	Yes
Memory
Packet buffer memory	4 MB
Certificates
Certification	FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
