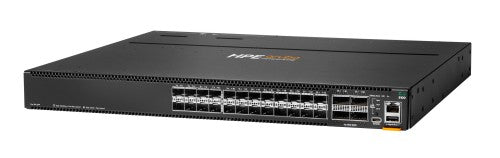

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch, Managed, L3, Rack mounting, 1U
Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
Customers can use data from the Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called HPE Aruba Networking Virtual Switching Extension (VSX).
HPE Aruba Networking VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.
Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.
HPE
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch
Part number:
R9W94A
Sale price
$16,586.01
Regular price
$21,700.00
Save
$5,113.99
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Reasons To Buy
Modular Cloud-Native Architecture
HPE Aruba Networking CX 8100 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplify the complexities of managing data center networks with automation options to match your IT organization’s operating model.Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
HPE Aruba Networking Network Analytics Engine (NAE)
HPE Aruba Networking CX 8100 Switch Series utilizes the HPE Aruba Networking Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.Customers can use data from the Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
High Availability and Resiliency
All software processes in the HPE Aruba Networking CX 8100 Switch Series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called HPE Aruba Networking Virtual Switching Extension (VSX).
HPE Aruba Networking VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.
Software-Defined Automation
The HPE Aruba Networking CX 8100 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.
Description
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 147456 entries, Switching capacity: 1280 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| USB Type-A ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1024 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN |
| IGMP snooping | Yes |
| MLD entries | 4096 |
| IPv6 multicast entries | 4096 |
| IPv4 multicast entries | 4096 |
| Data transmission | |
| Packet buffer memory | 32 MB |
| MAC address table | 147456 entries |
| Switching capacity | 1280 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 1024 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| MLD entries | 4096 |
| IPv6 multicast entries | 4096 |
| IPv4 multicast entries | 4096 |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP, BGP4, OSPF, RIP-2, RIPng, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 32 MB |
| Stackable | No |
| Power | |
| Power consumption (max) | 375 W |
| Power supply included | No |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47/63 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 181102.4" (0 - 4600 m) |
| Heat dissipation | 1275 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Virtual LAN features | Port-based VLAN |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
