Intel Core i5-1340P (12MB Cache), 8GB DDR4-SDRAM, 1000GB SSD, Intel UHD Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Compact yet Powerful Business Center
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this compact yet powerful business center that you work everyday.
The Way to Empower Your Business
Equips up to 13th Gen Intel® Core™ i7 processor with 12 cores and 16 threads, delivering computing capability and keeping you in the flow wherever you go.
Also, enjoy a more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
Bolt To The Next Power with Built-in Thunderbolt 4
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
Up to 4 Displays with Thunderbolt
With one Thunderbolt, one DP-out, one HDMI™-out, and a VGA port (D-sub), PRO DP10 Series allows you to extend up to 4 monitors to pre-view your programming, E-commerce content & data at home or in the office.
Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home, you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector port.
Connect All of Your Devices with Wi-Fi 6E
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices simultaneously, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speeds up to 2.4Gbps.
Transfer Files & Work with 2.5G LAN
Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN.
MSI Cloud Center
Fast, Secure & Wireless Backup
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI Center App
The MSI Center takes optimization to the next level with customizable UI that avoid unnecessary workload for your system and easily adjustable system modes; it helps to prioritize & allocate the resource on your hand and accelerate the performance of the software which you work with every day.
Hardware TPM Module Support
Hardware TPM (Trusted Platform Module) module is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.
Kensington Lock with Padlock Combo Design
Protect the unit with a physical Kensington Lock with Padlock Combo Design.
VESA Mountable with External Power Switch Design
The VESA Mountable design allows you to hook up PRO DP10 anywhere you like, improving its flexibility and letting users have good space management at home or office.
The external power switch brings the most convenient way to turn it on.
Easy To Maintenance Design
Users can easily upgrade two M.2 SSD, one 2.5” HDD/SSD, and two SO-DIMMs by disassembling the side covers.
Make PRO DP10 an even more flexible desktop and reduce the time wasted on upgrading.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
MSI

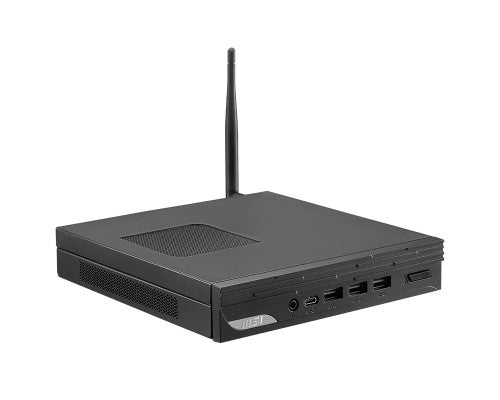

MSI Pro DP10 13M-059US Intel® Core™ i5 i5-1340P 8 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
Part number:
PRODP1013M059
$1,048.81
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Windows 11 Pro
- Intel Core i5-1340P (12MB Cache)
- 8GB (3200MHz) DDR4-SDRAM (1 x 8) & 1000GB SSD
Description
Resilient and Pioneering Spirit of Your BusinessYour business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Compact yet Powerful Business Center
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this compact yet powerful business center that you work everyday.
The Way to Empower Your Business
Equips up to 13th Gen Intel® Core™ i7 processor with 12 cores and 16 threads, delivering computing capability and keeping you in the flow wherever you go.
Also, enjoy a more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
Bolt To The Next Power with Built-in Thunderbolt 4
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
Up to 4 Displays with Thunderbolt
With one Thunderbolt, one DP-out, one HDMI™-out, and a VGA port (D-sub), PRO DP10 Series allows you to extend up to 4 monitors to pre-view your programming, E-commerce content & data at home or in the office.
Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home, you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector port.
Connect All of Your Devices with Wi-Fi 6E
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices simultaneously, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speeds up to 2.4Gbps.
Transfer Files & Work with 2.5G LAN
Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN.
MSI Cloud Center
Fast, Secure & Wireless Backup
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI Center App
The MSI Center takes optimization to the next level with customizable UI that avoid unnecessary workload for your system and easily adjustable system modes; it helps to prioritize & allocate the resource on your hand and accelerate the performance of the software which you work with every day.
Hardware TPM Module Support
Hardware TPM (Trusted Platform Module) module is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.
Kensington Lock with Padlock Combo Design
Protect the unit with a physical Kensington Lock with Padlock Combo Design.
VESA Mountable with External Power Switch Design
The VESA Mountable design allows you to hook up PRO DP10 anywhere you like, improving its flexibility and letting users have good space management at home or office.
The external power switch brings the most convenient way to turn it on.
Easy To Maintenance Design
Users can easily upgrade two M.2 SSD, one 2.5” HDD/SSD, and two SO-DIMMs by disassembling the side covers.
Make PRO DP10 an even more flexible desktop and reduce the time wasted on upgrading.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
Specifications
| Processor | |
|---|---|
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | i5-1340P |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| Processor threads | 16 |
| Processor cores | 12 |
| Processor family | Intel® Core™ i5 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total storage capacity | 1 TB |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Technical details | |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Motherboard chipset | Intel SoC |
| Design | |
| VESA mounting | Yes |
| Volume | 1.1 L |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Performance | |
| Market positioning | Business |
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Software | |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Volume | 1.1 L |
| Width | 7.01" (178 mm) |
| Depth | 1.36" (34.5 mm) |
| Height | 7.05" (179 mm) |
| Package weight | 4.63 lbs (2.1 kg) |
| Weight | 2.43 lbs (1.1 kg) |
| Packaging data | |
| Package weight | 4.63 lbs (2.1 kg) |
| Packaging content | |
| VESA mount included | Yes |
| Display included | No |
| Other features | |
| VESA mounting | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
