Socket E (LGA 4677), Intel C741, 8 x DIMM 288-pin DDR5 1.1V, Up to 12 SATA 6Gb/s, RAID 0/1/5/10, ASPEED AST2600, 2 x RJ45 (10GbE), 2 x RJ45 (1GbE)
Asrock

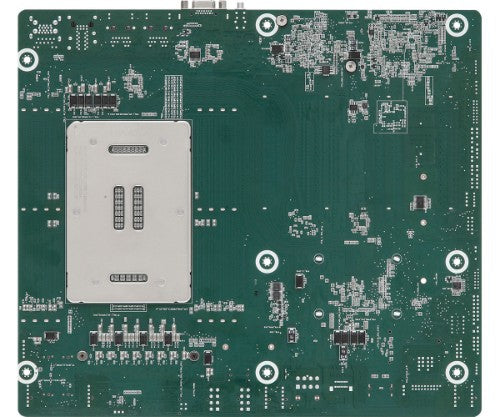

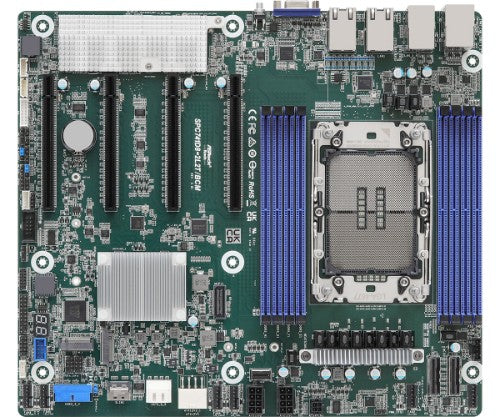

Asrock SPC741D8-2L2T/BCM motherboard Intel C741 LGA 4677 (Socket E)
Part number:
SPC741D8-2L2T/BCM
$769.84
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- CEB (12'' x 10.5'')
- Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
- 4 PCIe5.0 / CXL1.1 x16
- 1 MCIO (PCIe3.0 x4 or 4 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
- 2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)
- Up to 12 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- Remote Management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| Supported processor sockets | LGA 4677 (Socket E) |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Component for | Server |
| Performance | |
| Number of HDDs supported | 12 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 4677 (Socket E) |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | Server |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4677 (Socket E) |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Storage controllers | |
| Number of HDDs supported | 12 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 12 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| Audio connector | Yes |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |

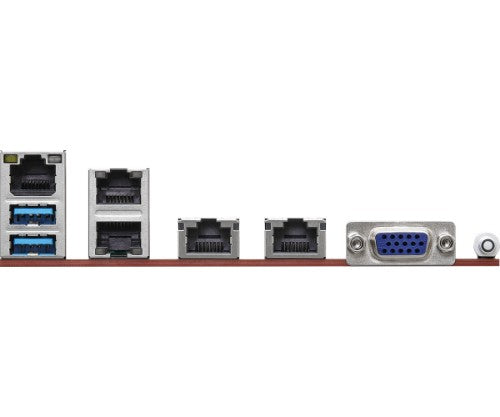

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| DVI-D ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Broadcom BCM57416, Intel I210 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| Supported processor sockets | LGA 4677 (Socket E) |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | Server |
| Product colour | Green, Gray |
| BIOS | |
| BIOS type | AMI |
| ACPI version | 4.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.4 |
| Operational conditions | |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Video | |
| Graphics card family | ASPEED |
| Weight & dimensions | |
| Width | 12" (304.8 mm) |
| Depth | 10.5" (266.7 mm) |
