1xSKT LGA4677, 4Gen. Intel Xeon Scalable, C741, 8xDIMM, SATA, 1xM.2, 2x10GbE, IPMI
Asrock

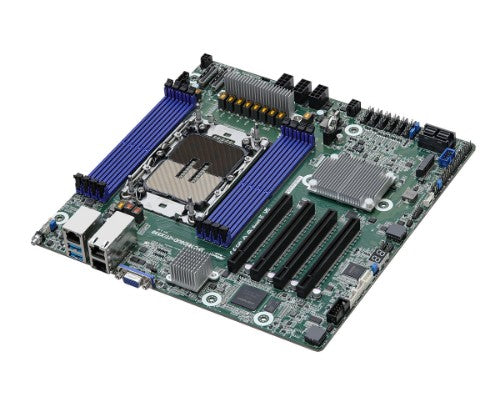

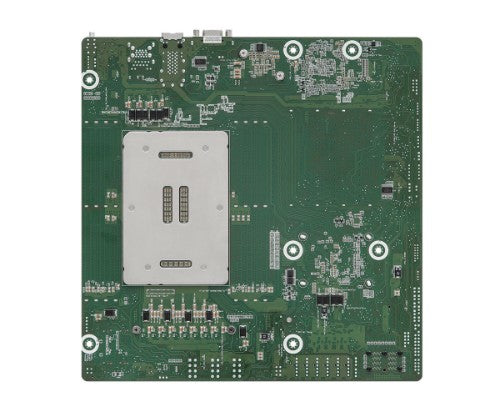

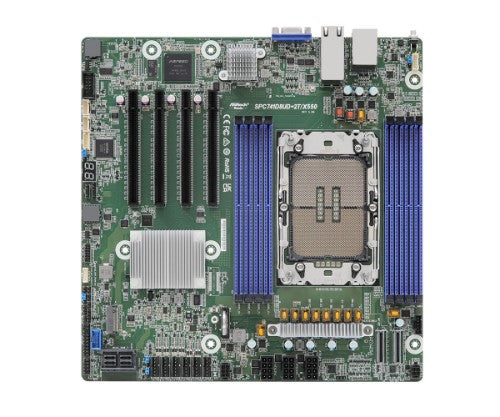

Asrock SPC741D8UD-2T/X550 motherboard Intel C741 LGA 4677 (Socket E) micro ATX
Part number:
SPC741D8UD-2T/X550
$759.26
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Deep Micro-ATX (10.4" x 10.5")
- Supports 5th and 4th Gen Intel® Xeon® Scalable processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
- 4 PCIe5.0 / CXL1.1 x16
- 2 MCIO (PCIE5.0 x8)
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Up to 9 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X550-AT2
- Supports ATX PSU or 12V DC-in
- Remote management (IPMI)
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 9 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4677 (Socket E) |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |

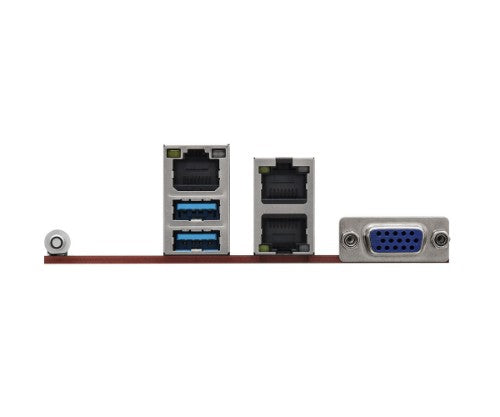

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| PCI Express x8 (Gen 5.x) slots | 2 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Weight & dimensions | |
| Width | 10.4" (264.2 mm) |
| Depth | 10.5" (266.7 mm) |
