1 GbE, 4x RJ45, 163.7 x 74.6 x 35.5 mm
Advantech

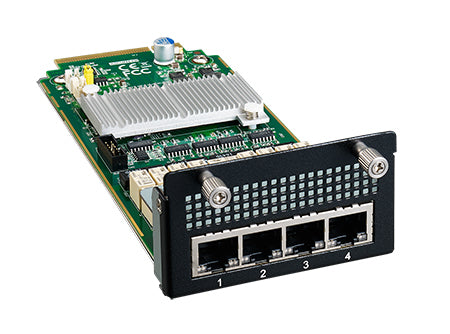

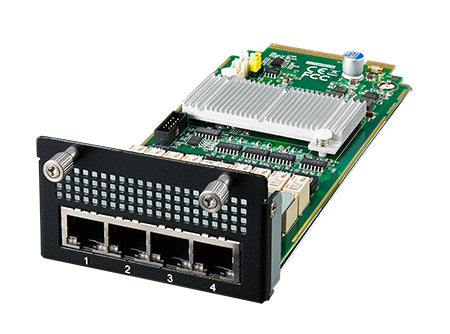

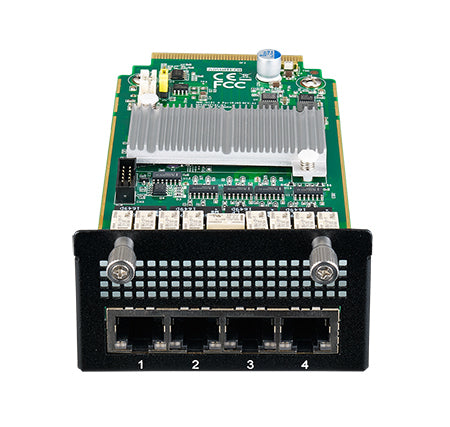

Advantech NMC-0121-04CSA1 network card Internal Ethernet 1000 Mbit/s
Part number:
NMC-0121-04CSA1
$209.58
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 1x Intel® i350_AM4
- 4 ports RJ45 connector
- PCI-E 2.0 x4
- NC-SI for IPMI Management
- Lan Bypass model available (Advanced LAN Bypass)
Description
NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts. Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Compliance certificates | CE, RoHS |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| LAN controller | Intel® I350-AM4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Internal | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 67 °C |
| Weight & dimensions | |
| Width | 2.94" (74.6 mm) |
| Depth | 6.44" (163.7 mm) |
| Height | 1.4" (35.5 mm) |
| Certificates | |
| Certification | CE, FCC, RoHS |
