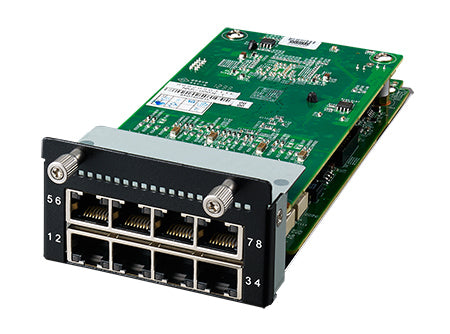

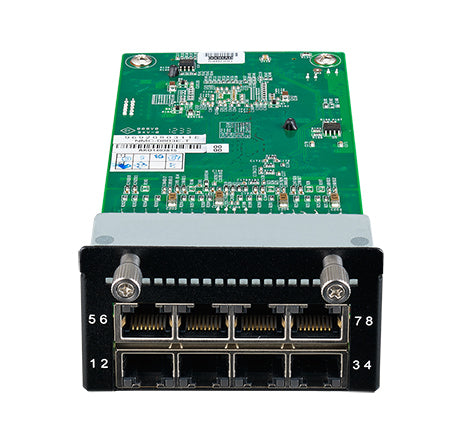

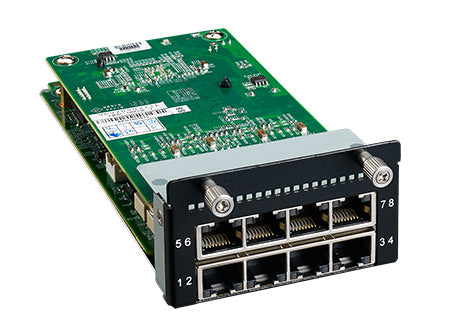

1 GbE, 2x PCI-E 2.0 x4, 8x RJ45, 74.6 x 35.6 x 175 mm

Key Features

• 2x Intel i350-AM4
• 8 ports RJ45 connector
• 2x PCI-E 2.0 x4
• Lan Bypass model available

Description

NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts.
Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.0
Ethernet LAN (RJ-45) ports	8
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Technical details
Product colour	Black
Compliance certificates	CE, RoHS
Network
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
LAN controller	Intel® I350-AM4
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Design
Product colour	Black
Certification	CE, FCC, RoHS
Internal	Yes
LED indicators	Yes
Software
Linux operating systems supported	Yes
Power
Output voltage	+12 V
Power consumption (typical)	10 W
Indication
LED indicators	Yes
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Linux operating systems supported	Yes
Compatible operating systems	Windows Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 67 °C
Weight & dimensions
Width	2.94" (74.6 mm)
Depth	6.88" (174.7 mm)
Height	1.67" (42.4 mm)
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Linux operating systems supported	Yes
Certificates
Certification	CE, FCC, RoHS
Other features
Compatible operating systems	Windows Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
