0.1Lux, 1/2.8" 2 MP CMOS, 1920 x 1080 FHD, H.265/H.264, MJPEG, SD/SDHC/SDXC, BLC, WDR, SSDR
Hanwha

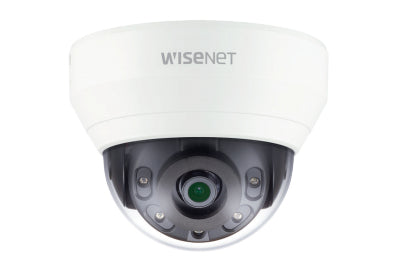

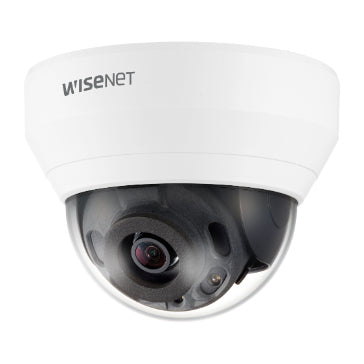

Hanwha QND-6022R security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling
Part number:
QND-6022R
Sale price
$208.72
Regular price
$289.00
Save
$80.28
28%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 2 Megapixel (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m
- Hallway view support
- Analog video out for easy installation
- LDC support (Lens Distortion Correction)
- Built-in microphone
Description
The QND-6012R from Hanwha's Q Series affordable network camera line is a 2 Megapixel indoor dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).Specifications
| Performance | |
|---|---|
| Number of languages | 17 |
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| Housing material | Plastic |
| Camera | |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 355° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 87.6° |
| Lens viewing angle, vertical | 46.4° |
| Lens viewing angle, diagonal | 104.5° |
| Image sensor | |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Zoom capability | Yes |
| Fixed focal length | 0.157" (4 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 640 x 360, 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Total megapixels | 2 MP |
| Audio | |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Audio formats supported | G.711, G.726 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Number of users | 6 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC, SDXC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Defocus |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, LEAP |
| Password protection type | User |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Anti-flicker | Yes |
| Material | |
| Housing material | Plastic |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 7.4 W |
| Power consumption (Power over Ethernet (PoE)) | 6 W |
| Power consumption (typical) | 5.1 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Weight & dimensions | |
| Height | 3.39" (86 mm) |
| Diameter | 4.33" (11 cm) |
| Weight | 8.99 oz (255 g) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
