Compact high brightness laser projector, DLP, 3600 lumens, WXGA (1280x800), 16:10
The ZW340e is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.
To support Optoma’s commitment to sustainability, the ZW340e cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors. Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZW340e features an external power supply offering more reliability, portability and energy efficiency. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the ZW340e projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.
Optoma

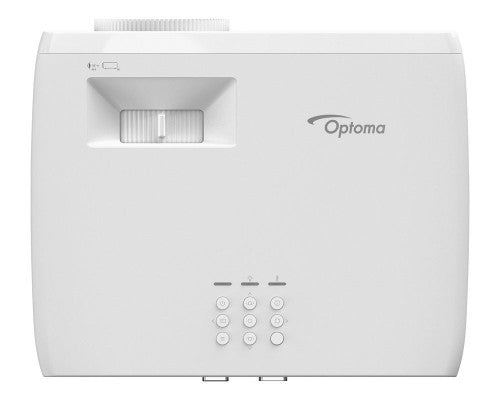

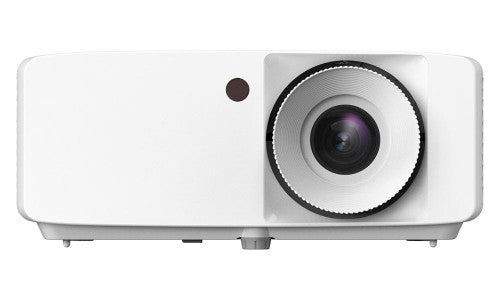

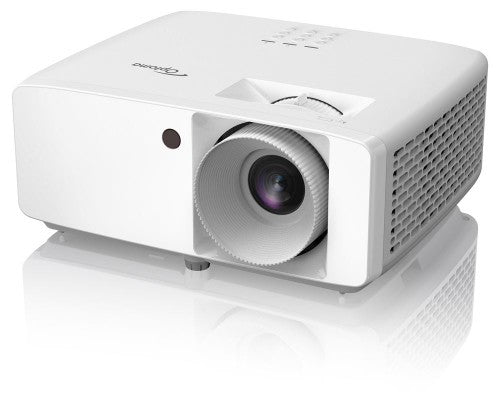

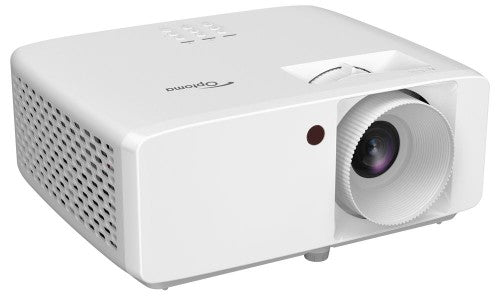

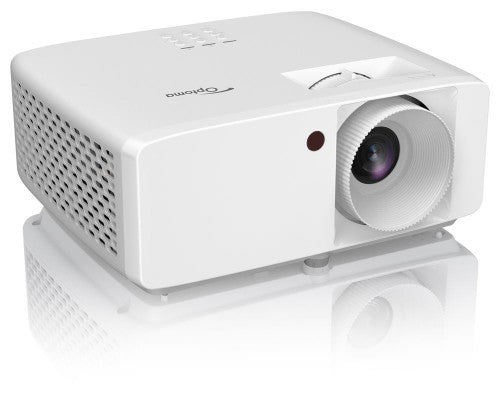

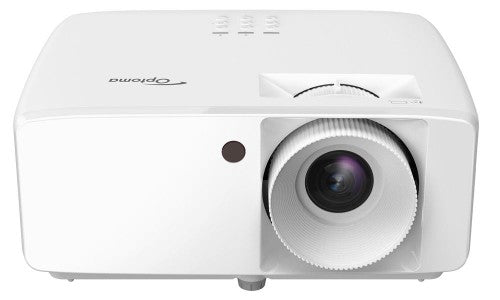

Optoma ZW340e data projector Standard throw projector 3600 ANSI lumens DLP WXGA (1280x800) 3D White
Part number:
ZW340E
Sale price
$667.24
Regular price
$989.00
Save
$321.76
33%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Compact high brightness laser projectorThe ZW340e is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.
To support Optoma’s commitment to sustainability, the ZW340e cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors. Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZW340e features an external power supply offering more reliability, portability and energy efficiency. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the ZW340e projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colors |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 20 - 300" |
| Projection distance | 39.4 - 393.7" (1 - 10 m) |
| Contrast ratio (typical) | 300000:1 |
| Contrast ratio (dynamic) | 2000000:1 |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 140 kHz |
| Uniformity | 75% |
| Keystone correction, vertical | -40 - 40° |
| Projection technology | DLP |
| Projector brightness | 3600 ANSI lumens |
| Light source | |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Focal length range | 21.85 - 24 mm |
| Throw ratio | 1.54 - 1.72:1 |
| Offset | 112% |
| Zoom type | Manual |
| Video | |
| Analog signal format system | NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 0 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| HDMI version | 1.4a |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
| Smart TV | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| Password protection | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Noise level | 31 dB |
| Certification | IP6X |
| Number of OSD languages | 26 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
| Design | |
| Market positioning | Business |
| Product type | Standard throw projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 139 W |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 88 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 6.61 lbs (3 kg) |
| Width | 10.8" (274 mm) |
| Depth | 8.5" (216 mm) |
| Height | 4.49" (114 mm) |
| Package weight | 9.26 lbs (4.2 kg) |
| Packaging content | |

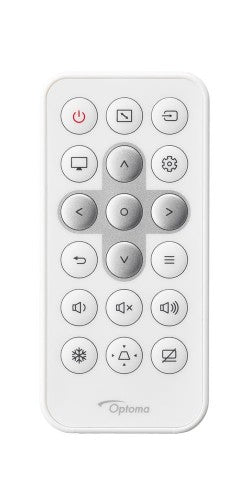

| Remote control included | Yes |
| Remote control type | IR |
| Manual | Yes |
| Cables included | AC |
| Batteries included | Yes |
| AC adapter included | Yes |
